Ideal 30-1039J Push-In Connector 3-Port (PK150)

Product Description

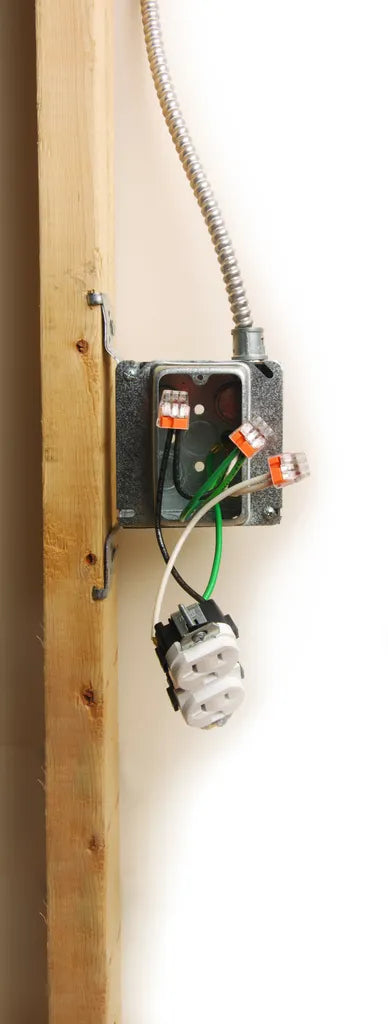

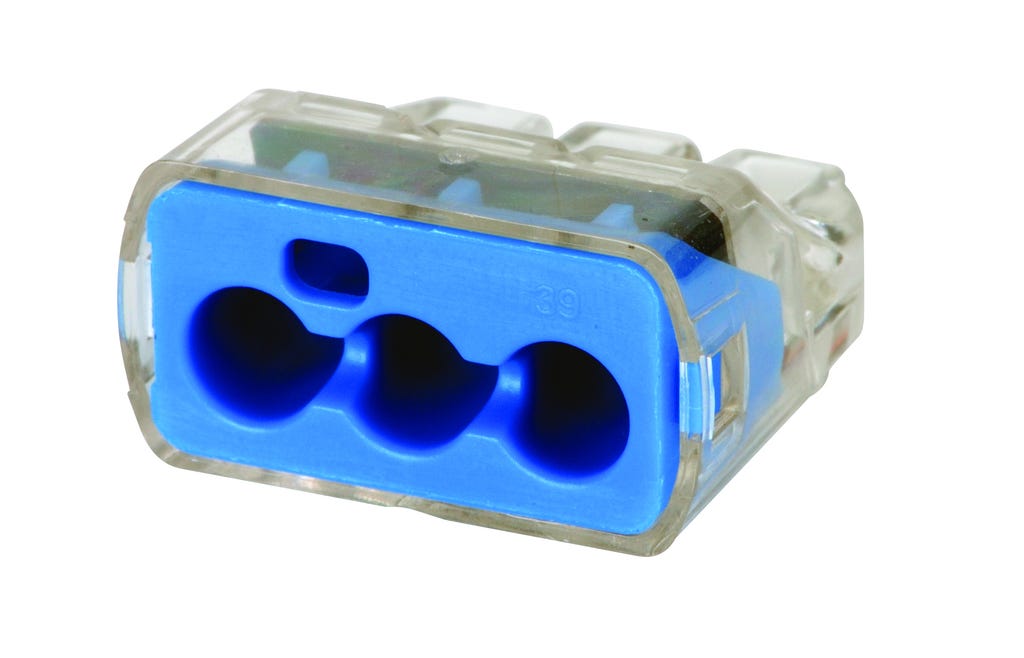

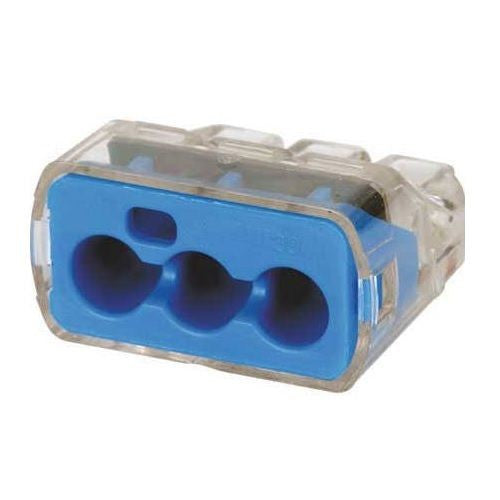

The IDEAL 30-1039J push-in connector is a 3-port connector designed for use with copper and tin-plated copper conductors. It accommodates stranded wire sizes from 14 AWG to 10 AWG. The polycarbonate housing provides durability, and the clear shell allows for visual verification of connections. It is suitable for residential, commercial, and lighting applications.

• Color-coded for easy identification
• Clear shell gives visual verification of connection
• Approved for bonding and grounding applications

Product Highlights

This push-in wire connector features a polycarbonate housing with an ergonomic grip and is UL and CSA compliant.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-1039J
• Country of Origin: United States

Technical Specifications

• Item: Push-In Connector
• Color: Blue
• Height: 0.45 in
• Length: 0.78 in
• Current: 30 A
• Standards: CSA, UL
• Wire Type: Copper - solid and stranded, Stranded tin-bonded copper
• Wire Range: 14 to 10 AWG Solid, 14 to 10 AWG Stranded
• Maximum Voltage: 600 V
• Strip Length: 3/8 in
• For Wire Size: 10 AWG, 12 AWG, 14 AWG
• Overall Width: 0.86 in
• Connector Type: 3 Port
• Contact Finish: Tin
• RoHS Compliant: Yes
• Number of Ports: 3
• Wire Size Range: 14 AWG - 10 AWG
• Contact Material: Copper
• Housing Material: Polycarbonate
• Special Features: Approved For Bonding And Grounding Applications, Clear Shell Gives Visual Verification Of Connection, Compact Size Makes Installation Easy, Ergonomic Design For Easy Grip And Comfortable Installation, Low Insertion Force For Fast And Easy Connections
• For Conductor Material: Copper, Tin-Plated Copper
• UL 94 Flammability Rating: V-2
• Compatible with Product Type: Twist-On Wire Connector
• Description/Special Features: Polycarbonate Housing with Ergonomic Grip
• For Maximum Wire Size - Solid: 10 AWG
• For Minimum Wire Size - Solid: 14 AWG
• Maximum Operating Temperature: 221 Degrees F
• For Maximum Wire Size - Stranded: 10 AWG
• For Minimum Wire Size - Stranded: 14 AWG
• Country of Origin (subject to change): United States
• Material: Nylon/Polycarbonate
• Minimum Order Qty: 150
• Order Interval: 150
• Catalog ID: IDE30-1039J
• Finish: Tin Plated
• Series: 39
• Specifications: 3 Port, 3/8 in - 1/2 in Strip
• Temperature Rating: 221 deg F
• Type: Push-In
• Wire Type (specs): Solid/Stranded/Stranded (Tin-Bonded)
• Application: For Grounding and Bonding Applications
• Standard & Approvals: C22.2 No 188 CSA Certified, RoHS Compliant, UL 94V-2 Flammability Rating, UL 486C, UL467 Listed
• Voltage: 600 V
• Wire Range Solid: 10 - 14 AWG
• Wire Range Stranded: 10 - 12 AWG (≤19 strand)
• Wire Range Tin Bonded: 10 - 14 AWG (≤19 strand)
• Strip Length (specs): 9.5 - 13 mm (3/8 - 1/2 in)
• Hole Size: 0.875 in (1/2 in KO)
• Plating: Tin
• Flame Rating: UL 94V-2
