Ideal 30-1039 Connector W Push-In Sol/Strd/Tin-Bnd Bl

Product Description

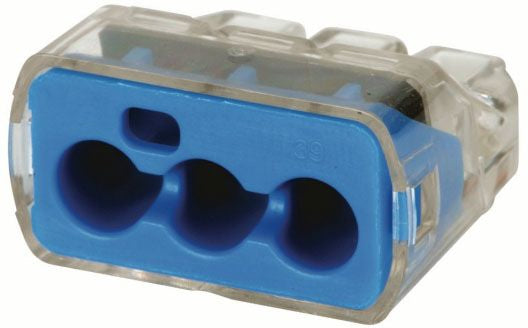

The IDEAL 30-1039 Connector is a push-in wire connector designed for solid, stranded, and tin-bonded wires. This connector caters to wire sizes ranging from fourteen to ten AWG and twelve to ten AWG. The product features three ports to facilitate efficient connections in various applications.

• No twist connection reduces repetitive motion fatigue.
• Built-in strip length gauge for easy installation.
• Compact size allows installations in tight spaces.

Product Highlights

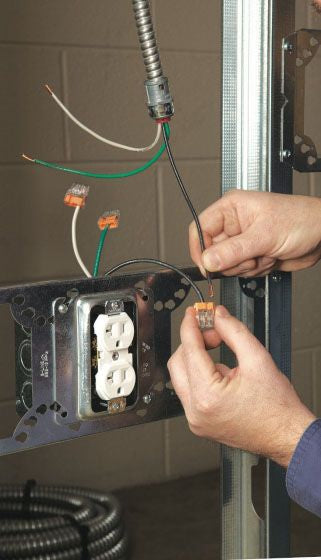

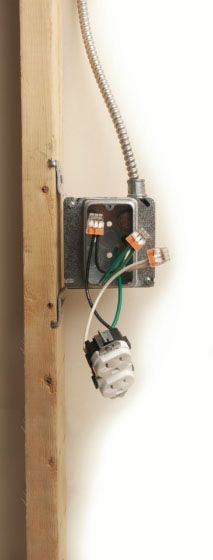

This In-Sure push-in wire connector offers a simple and effective means of connecting wires without the need for twisting. Its low insertion force enables quick connections, making it suitable for OEM lighting and branch circuit wiring applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part No: 30-1039

Technical Specifications

• Wire Size: 14-10 AWG
• Ports: 3
• Voltage Rating: 600 VAC
• Temperature Rating: 221 deg F
• Color: Blue
• Material: Nylon/Polycarbonate
• Dimensions: 0.78 in L x 0.86 in W x 0.45 in H
