Product Description

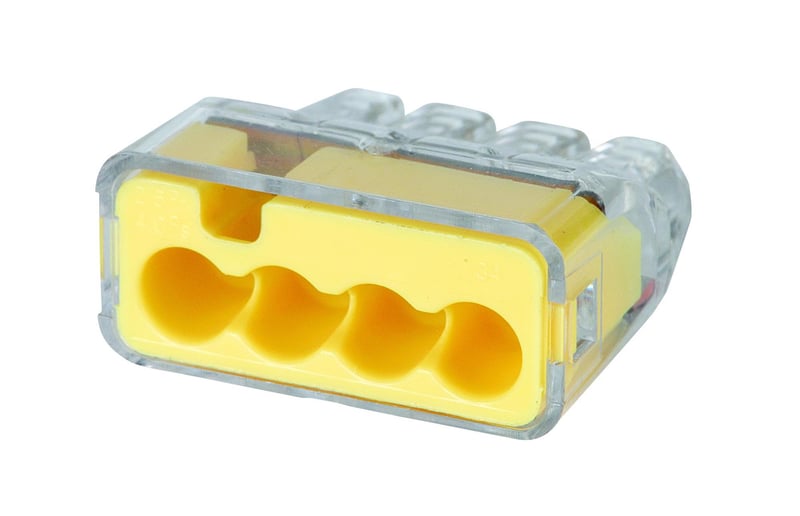

IDEAL 30-1034J is a push-in wire connector designed for efficient electrical connections. It connects four wires and accommodates various wire sizes including #12 AWG to #20 AWG solid and stranded wires. This model is ideal for bonding and grounding applications.
- Low insertion force for fast connections
- Clear shell for visual connection verification
- Tough flame-retardant shell for durability
Product Highlights
The connector's ergonomic design and compact size allow for comfortable installation in tight spaces.
Product Information
Standard Information
Technical Specifications
-
Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs and Lighting Fixtures
-
Temperature Rating: 105 DEG C
-
Wire Sizes Supported: #12 AWG - #20 AWG Solid; #12 AWG - #16 AWG (19 Strand or Less); #18 AWG (7 Strand) Stranded; #14 AWG - #18 AWG (19 Strand or Less) Stranded (Tin Bonded)
-
Size: 0.78 inches Length x 0.82 inches Width x 0.38 inches Height
-
Connection Type: 4 Ports
-
Sub Brand: In-Sure
-
Standards Compliance: UL Listed, CSA Certified, RoHS
