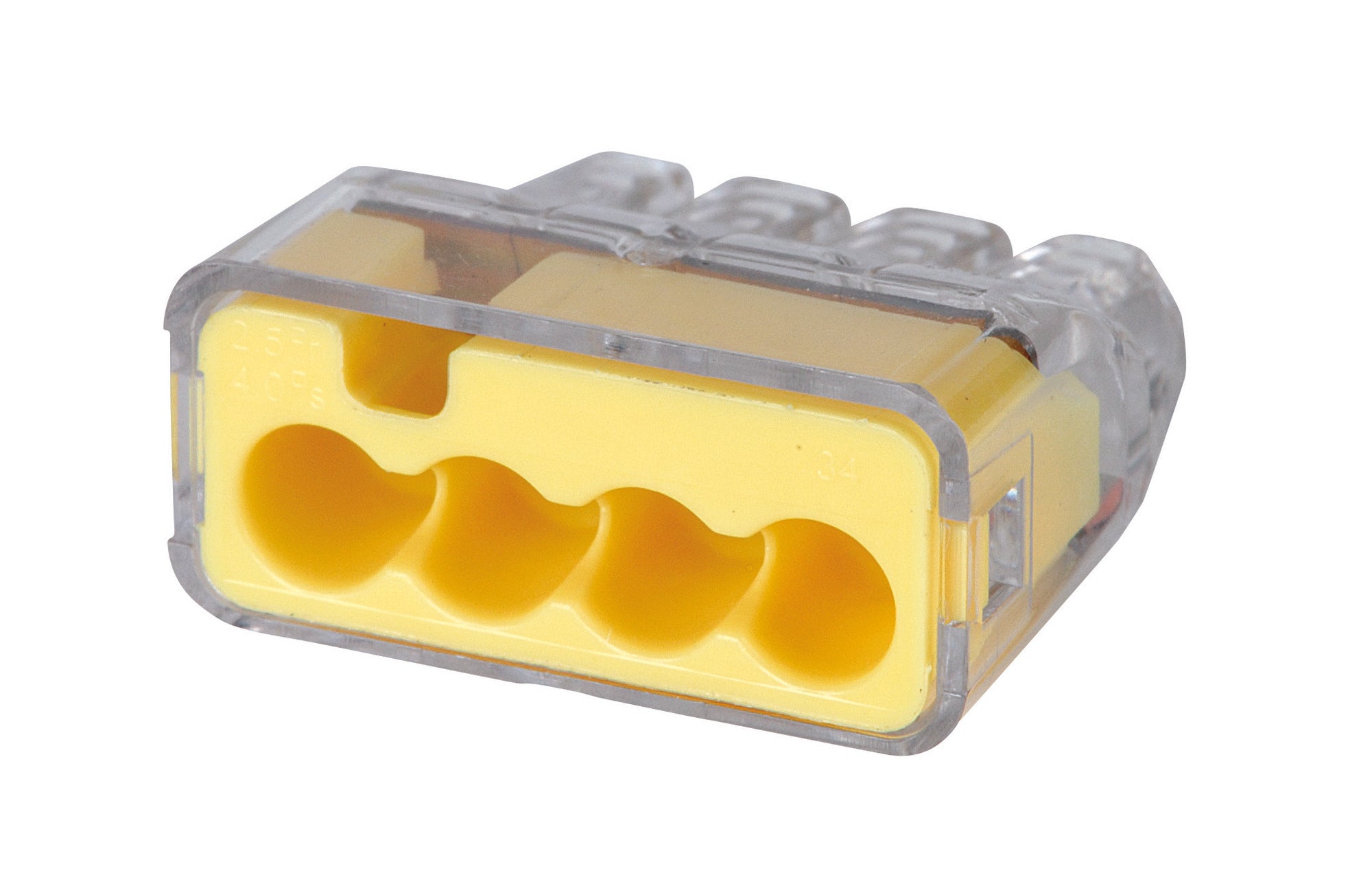

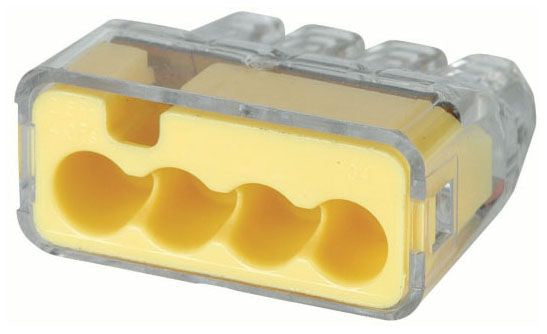

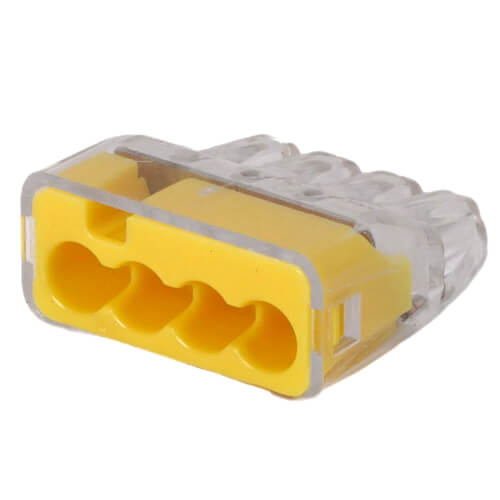

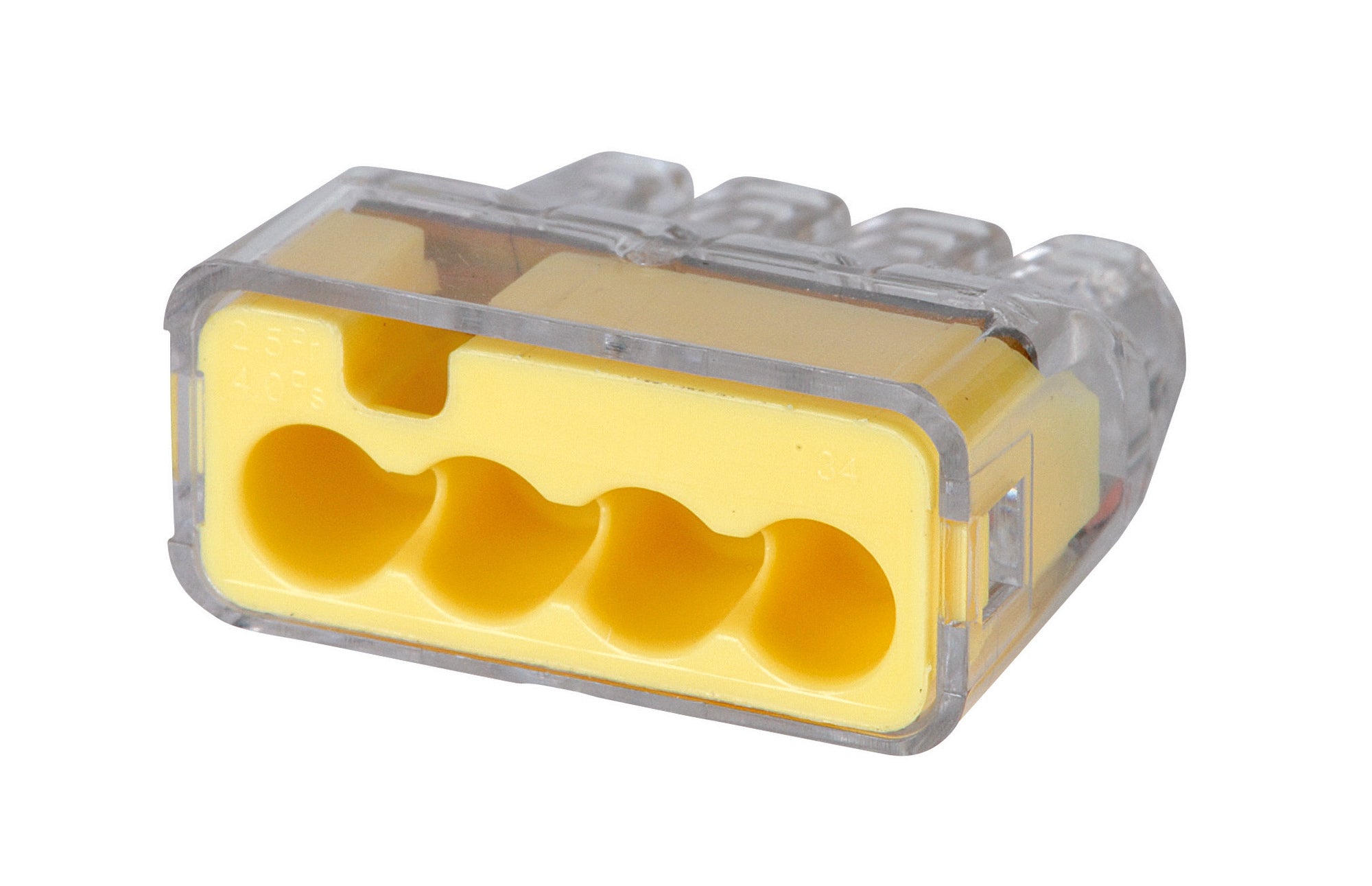

Ideal 30-1034J 4 Port 12 AWG Push-In Wire Connector Model 34

Product Description

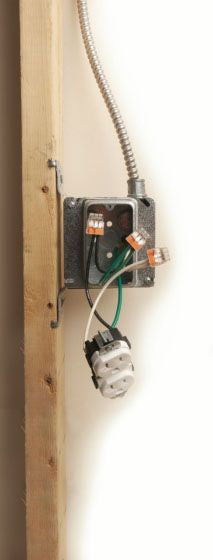

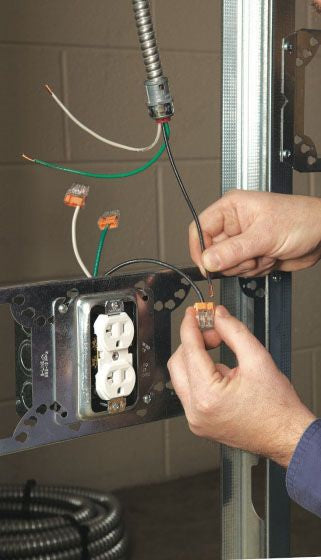

The Ideal 30-1034J is a push-in wire connector designed for ease of use in various wiring applications. This connector accommodates wire sizes ranging from twelve to twenty AWG solid or stranded wire, making it a versatile choice for any electrical job. Its design allows for fast connections with minimal effort. The connector is perfect for residential and light commercial wiring, as well as for use in retrofitting lighting and prefab systems.

• Low insertion force for quick and easy connections.
• Clear shell allows for visual verification of connections.
• Compact size suitable for tight spaces and shallow boxes.

Product Highlights

This push-in connector saves time and reduces repetitive motion fatigue, making wiring tasks more efficient.

Product Information

Standard Information

• Brand: Ideal
• MPN: 30-1034J

Technical Specifications

• Color: Yellow
• Wire Sizes Supported: #12 AWG - #20 AWG solid; #12 AWG - #16 AWG (19 strand or less); #18 AWG (7 strand); #14 AWG - #18 AWG (19 strand or less) stranded (tin bonded)
• Connection: 4 Ports
• Voltage Rating: 600 V maximum building wire; 1000 V maximum signs and lighting fixtures
• Temperature Rating: 105 DEG C shell rated
• Standards and Approvals: UL listed to 486C; CSA certified to C22.2 #188; RoHS compliant
• Material: Polycarbonate
