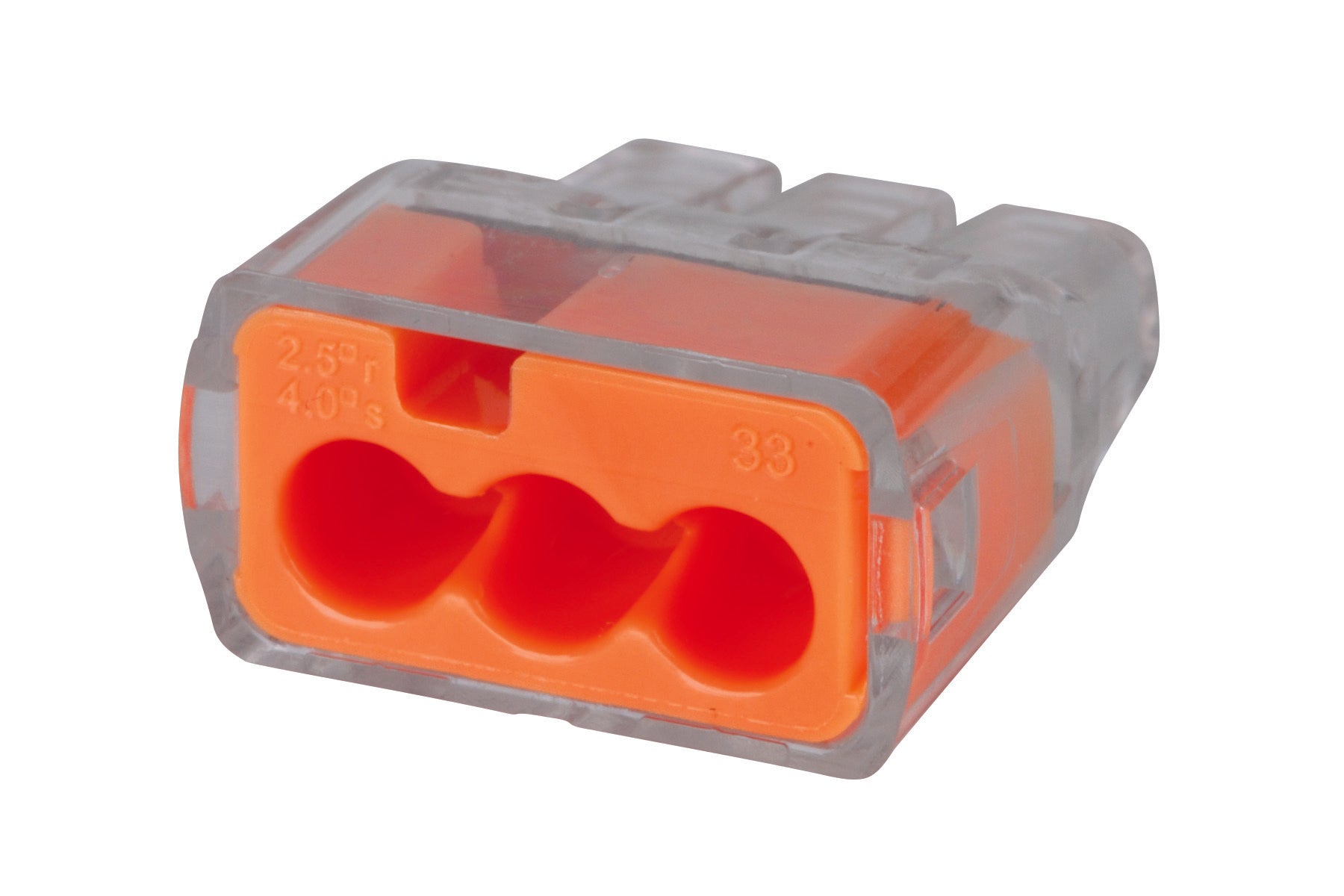

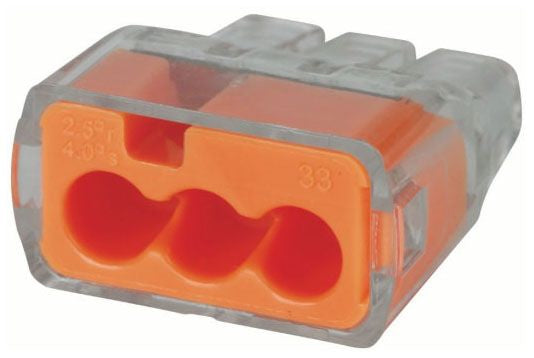

Ideal 30-1033J Push-In Wire Connector 600V 0.780 IN Length 0.690 IN Width 0.380 IN Height

Product Description

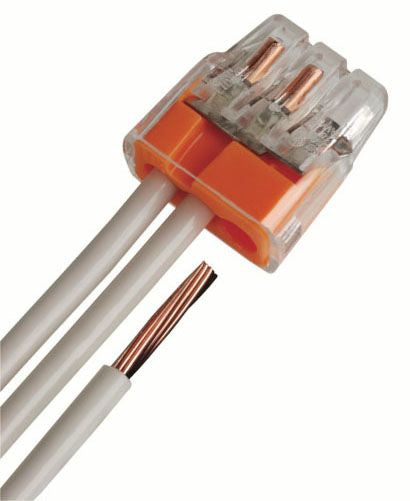

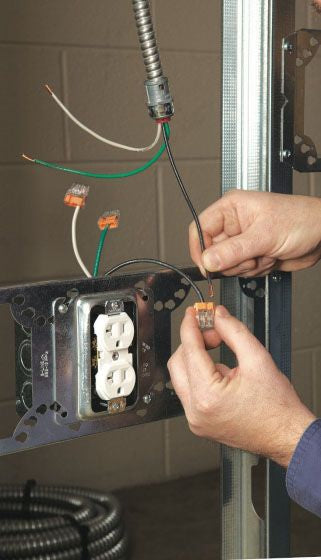

The Ideal Push-In Wire Connector, MPN 30-1033J, is designed for efficient wire connection in various electrical applications. This connector supports wire sizes from #12 AWG to #20 AWG solid, as well as stranded wires. It is suitable for a variety of installations, including residential and light commercial wiring.

• Low insertion force for quick and easy connections.
• Compact size allows for installation in tight spaces.
• Clear shell provides visual confirmation of proper wire insertion.

Product Highlights

Suitable for grounding and bonding applications, the Ideal Push-In Wire Connector enhances productivity and reduces repetitive strain.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: 30-1033J
• Dimensions: 0.780 IN Length x 0.690 IN Width x 0.380 IN Height
• Connection Ports: 3 Ports
• Wire Size: #12 AWG - #20 AWG Solid, #12 AWG - #16 AWG (19 Strand or Less), #18 AWG (7 Strand) Stranded
• Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs and Lighting Fixtures
• Temperature Rating: 105 DEG C Shell Rated
• Material: Nylon/Polycarbonate
