Product Description

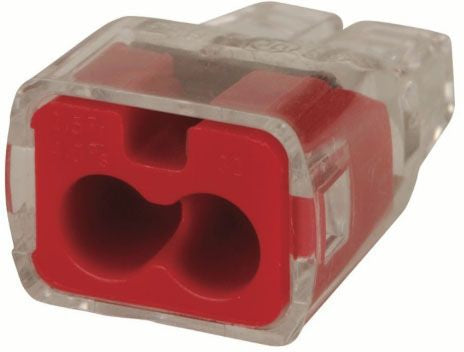

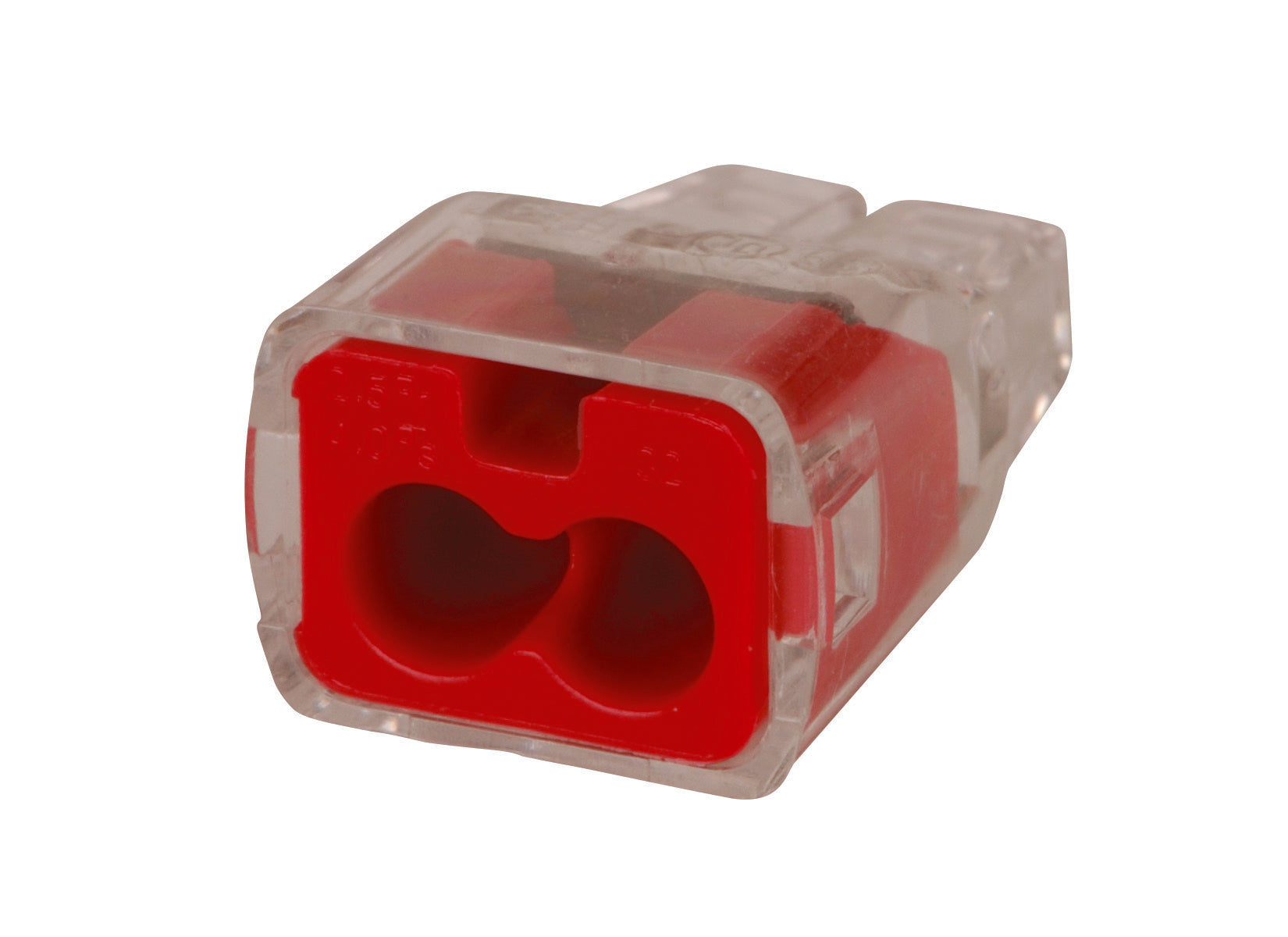

The Ideal 30-1032J Push-In Wire Connector is designed for quick and easy electrical connections. This connector is suitable for wire sizes ranging from twelve to twenty AWG. It is a reliable solution for residential and commercial wiring. The low insertion force simplifies connections and saves time on the job.
- Compatible with solid and stranded wire.
- Rated for 600 volts maximum building wire.
- Clear shell allows for visual connection verification.
Product Highlights
Perfect for grounding and bonding applications, this connector enhances productivity and simplifies installations.
Product Information
Standard Information
-
Brand: Ideal
-
Catalog Number: 30-1032J
Technical Specifications
-
Voltage Rating: 600V Maximum
-
Wire Size: #12 AWG - #20 AWG Solid
-
Wire Size: #12 AWG - #16 AWG (19 Strand or Less)
-
Wire Size: #18 AWG (7 Strand) Stranded
-
Color: Red
-
Connection: 2 Ports
-
Temperature Rating: 105 Deg C
-
Material: Nylon/PC (Housing), Copper (Contact), Tin (Plating)
-
Size: 0.780 IN Length x 0.520 IN Width x 0.380 IN Height
