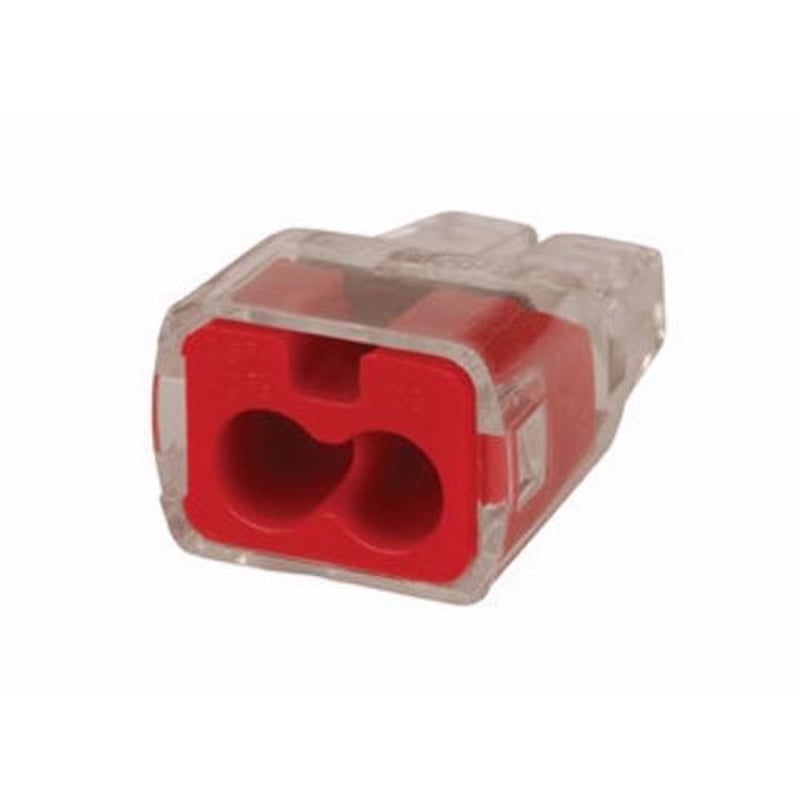

IDEAL 30-1032J 2 Port Push-In Wire Connector 12 AWG Model 32

Product Description

IDEAL 30-1032J is a push-in wire connector designed for use in various wiring applications. This product features two ports, allowing connections for wire sizes ranging from twelve AWG to twenty AWG. Constructed for reliability, the connector is UL listed and CSA certified for performance and safety.

• Designed for quick and easy wire connections.
• Compatible with solid and stranded wire types.
• Rated for up to 600 volts maximum for building wire.

Product Highlights

The IDEAL In-Sure push-in wire connector ensures efficient and secure wire connections for both residential and commercial applications.

Product Information

Standard Information

• Brand: IDEAL
• Model: 32

Technical Specifications

• Connection: 2 Ports
• Wire Size Compatibility: #12 AWG - #20 AWG Solid, #12 AWG - #16 AWG (19 Strand Or Less) Stranded, #14 AWG - #18 AWG (19 Strand Or Less) Stranded (Tin Bonded)
• Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures
• Temperature Rating: 105 DEG C Shell Rated
• Size: 0.780 IN Length X 0.520 IN Width X 0.380 IN Height
• Special Features: Compact size; clear shell allows for visual verification of connections; ergonomic design for easy handling
• UNSPSC: 39121409
