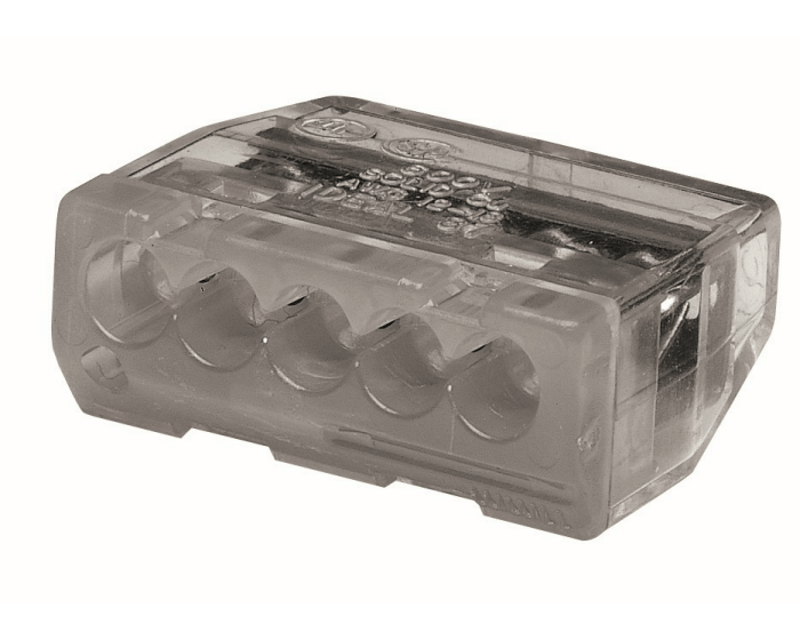

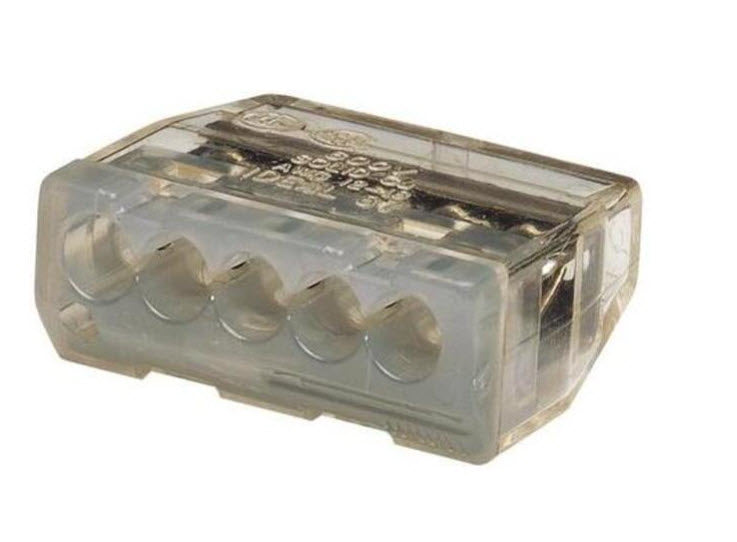

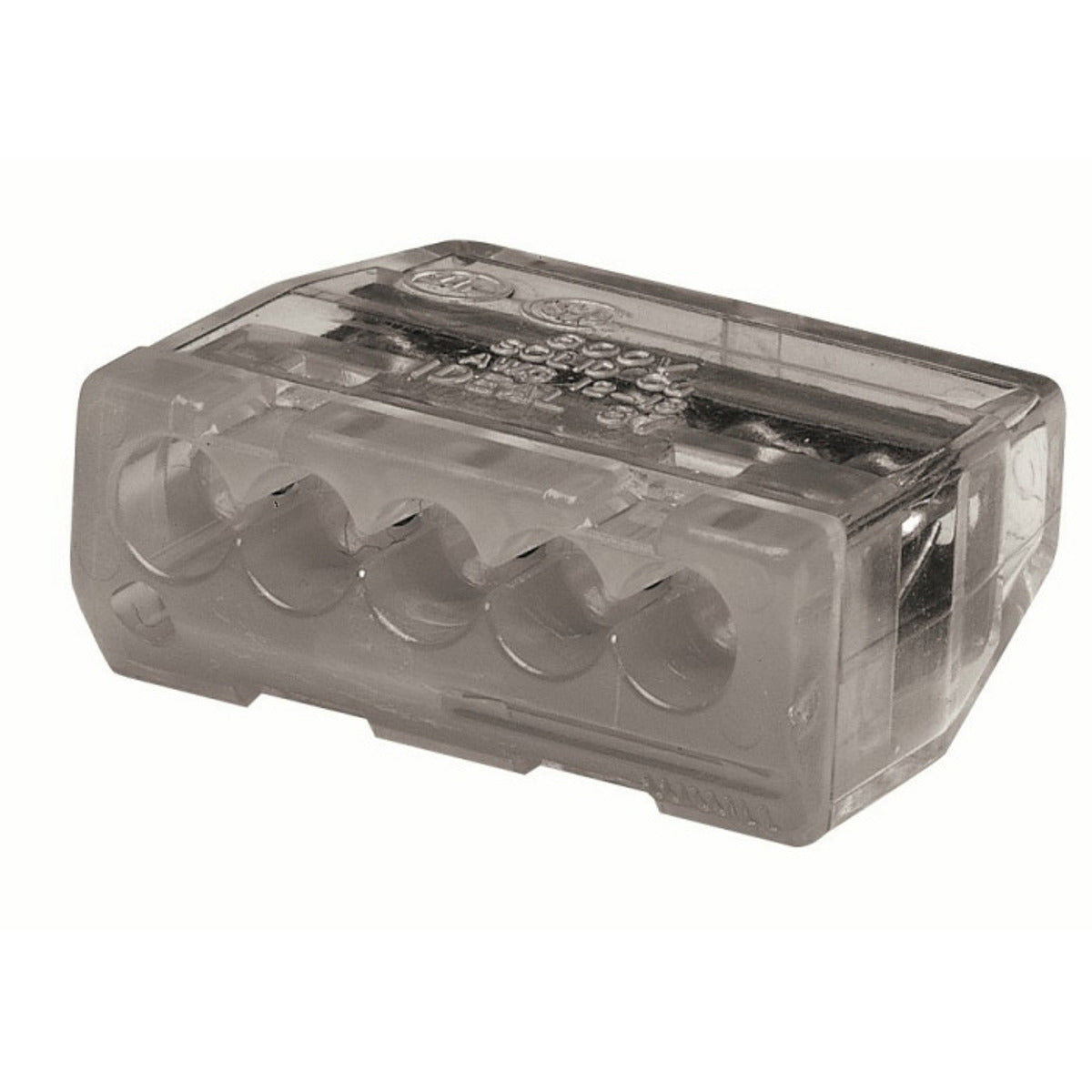

Ideal 30-087J In-Sure Push-In Wire Connector 5 Ports

Product Description

The IDEAL 30-087J In-Sure Push-In Wire Connector is designed for residential, light commercial, lighting retrofit, and pre-fab wiring systems. This push-in connector features low insertion force for fast connections. Its clear polycarbonate housing allows visual verification, and the flame-retardant shell withstands harsh environments.

• No-Twist connection reduces repetitive motion fatigue
• Clear shell gives visual verification of connection
• Compact size makes installation easy

Product Highlights

This 5-port push-in wire connector is UL Listed and CSA Certified. It is rated to 600V for building wire and 1000V for signs and lighting fixtures.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-087J
• Country of Origin: United States

Technical Specifications

• Catalog Number: 30-087J
• Manufacturer: Ideal Industries
• Brand: Ideal
• Sub Brand: In-Sure
• Country of Origin: United States
• Made in USA: Yes
• Application: For Grounding And Bonding Applications
• Connection: 5 Ports
• Standard: CSA C22.2 #188, 486C/467 UL Listed, RoHS
• UPC: 783250460779
• GTIN: 00783250460779
• Item Type: Push-In
• Temperature Rating: 105 DEG C Shell Rated
• Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures
• Wire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded)
• Number of Ports: 5
• Wire Size Range: 20 AWG - 12 AWG
• Contact Material: Copper
• Housing Material: Polycarbonate
• For Conductor Material: Copper
• UL 94 Flammability Rating: V-2
• For Maximum Wire Size - Solid: 12 AWG
• For Minimum Wire Size - Solid: 20 AWG
• Maximum Operating Temperature: 221 Degrees F
• For Maximum Wire Size - Stranded: 14 AWG
• For Minimum Wire Size - Stranded: 18 AWG
• Wire Type: Solid; Stranded; Stranded (Tin Bonded)
• Current: 20 A
