Product Description

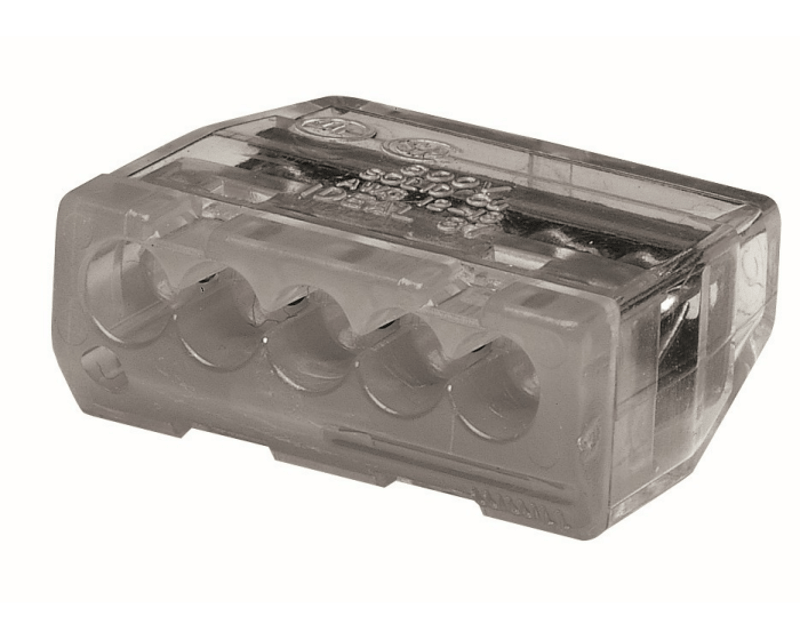

The IDEAL 30-087J is a five-port push-in wire connector suitable for wire sizes ranging from twelve to twenty AWG. It is designed for ease of installation and offers a no-twist connection that minimizes repetitive motion. This product is ideal for various applications, including residential and light commercial wiring, lighting retrofits, and branch circuit wiring.
- Connection type: five ports
- Voltage rating: 600 V maximum for building wire; 1000 V maximum for signs and lighting fixtures
- Temperature rating: 105 degrees Celsius
Product Highlights
The In-Sure push-in wire connector simplifies wire connections, its compact design allows for use in tight spaces, and its clear housing enables easy inspection of connections.
Product Information
Standard Information
-
Brand: IDEAL
-
MPN: 30-087J
Technical Specifications
-
Product Name: Push-In Wire Connector
-
Connection: 5 Ports
-
Wire Type: Solid, Stranded, Stranded (Tin Bonded)
-
Wire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less), #12 AWG - #14 AWG (19 Strand Or Less)
-
Size: 0.355 inches Length x 0.907 inches Width x 0.729 inches Height
-
Standard Compliance: UL Listed, CSA Certified
-
Special Features: Low insertion force for fast connections, flame-retardant shell
