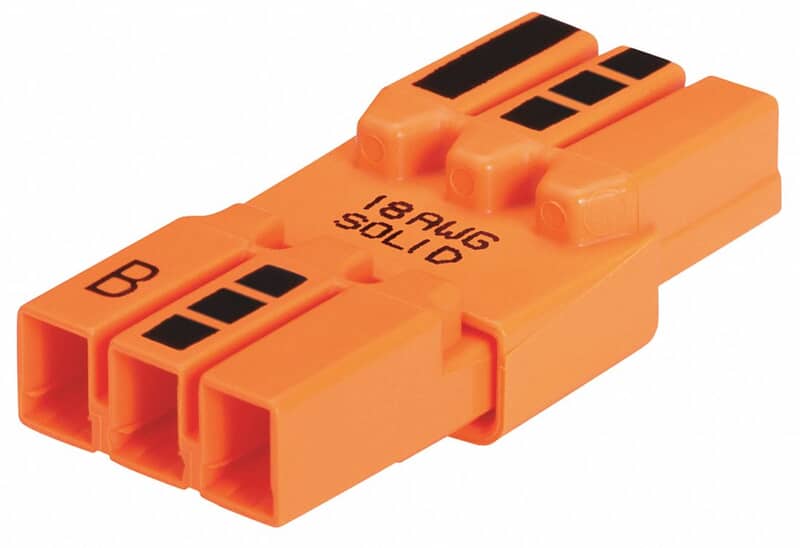

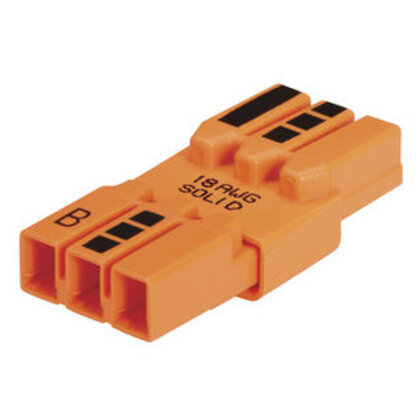

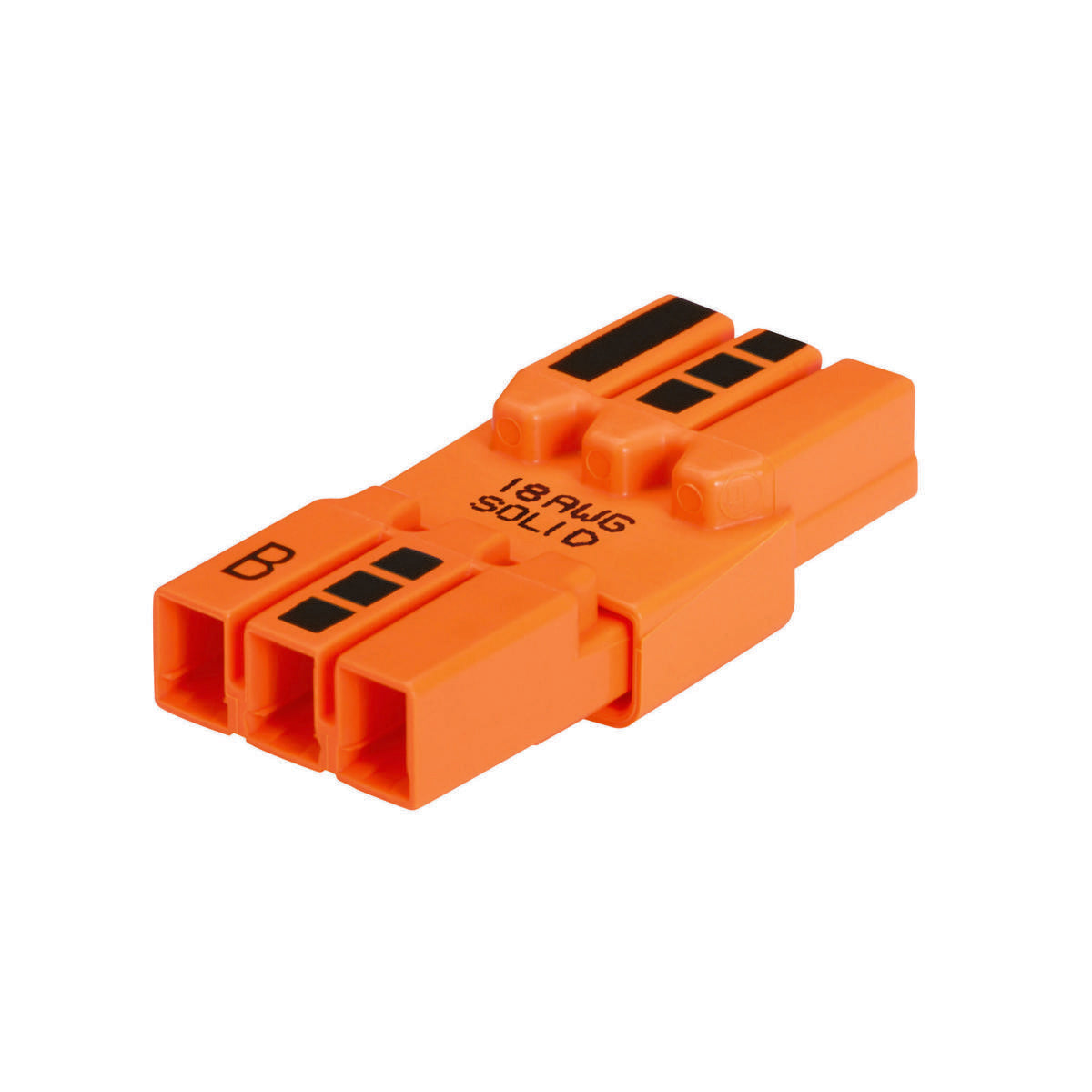

Ideal 30-083 Luminaire Disconnect PowerPlug Solid 3-Wire 18 AWG Solid

Product Description

The IDEAL 30-083 PowerPlug Luminaire Disconnect features patented push-in technology that quickly locks wires in place. It helps reduce electrical shock hazard during luminaire replacement by safely disconnecting the wiring. Both halves are touch-safe per UL 2459 and easily fit through 1/2-inch knockouts for quick installation. For 2-Ballast, dimming and Switching Fixtures Retrofits.

• Patented design allows for safe mating and demating of connector
• Push-in technology results in quicker connections, saving time and increasing productivity
• Both halves are touch-safe per UL 2459

Product Highlights

The PowerPlug is perfect for OEM or retrofit lighting applications and meets CEC and NEC code changes for non-residential fluorescent luminaires with ballasts.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 30-083
• Country of Origin: China

Technical Specifications

• Catalog Number: 30-083
• Manufacturer: Ideal
• Brand: Ideal
• Sub Brand: PowerPlug®
• Country of Origin: China
• Application: For 2-Ballast, dimming and Switching Fixtures Retrofits
• Material: Nylon Housing, Copper Alloy Contacts
• Standard: CSA, UL Listed, RoHS
• Item Type: Solid 3-Wire
• Voltage Rating: 120, 277, 347, 480, 600 V
• Wire Size: 18 AWG Solid
• Number of Ports: 3.0
• Temperature Rating: 105 DEG C
• Current Rating: 3 Ampere
• Knockout Size: 1/2 Inch
• Wiring: 3 Wire
• Item: Ballast Disconnect
• Gender: 3 Male/3 Female
• Standards: CEC Part I Rule 30-308(4), CSA, NEC 410.130(G), NEC 410.73(G), UL
• Max. Temp.: 221 Degrees F
• Male/Female: 3 Male/3 Female
• Max. Voltage: 600 V
• Overall Length: 1.58 in
• RoHS Compliant: No
• Connection Type: Push-In
• Insulation Type: Polycarbonate
• Maximum Current: 3 A
• Number of Poles: 3-Pole Disconnects
• Contact Material: Tin-Plated Brass
• Insulation Color: Orange
• Number of Pieces: 100
• Special Features: Fits Through 1/2 in Knockout
• Connection Material: Tin-Plated Brass
• Compatible with Series: 183
• For Conductor Material: Copper
• For Line Side Wire Size: 18 AWG
• UL 94 Flammability Rating: V-0
• For Ballast Side Wire Size: 18 AWG
• Number of Ports - Line Side: 3.0
• Wire Size Range (Line Side): 18 AWG - 18 AWG
• Maximum Operating Temperature: 221 Degrees F
• Number of Ports - Ballast Side: 3.0
• Wire Size Range (Ballast Side): 18 AWG - 18 AWG
• For Line Side Solid Wire Size - Maximum: 18 AWG
• For Line Side Solid Wire Size - Minimum: 18 AWG
• For Ballast Side Solid Wire Size - Maximum: 18 AWG
• For Ballast Side Solid Wire Size - Minimum: 18 AWG
• Allowable Gauge Range: 18
