Ideal 30-076 Wire-Nut Twist-On Connector 600VAC 18 - 12 AWG

Product Description

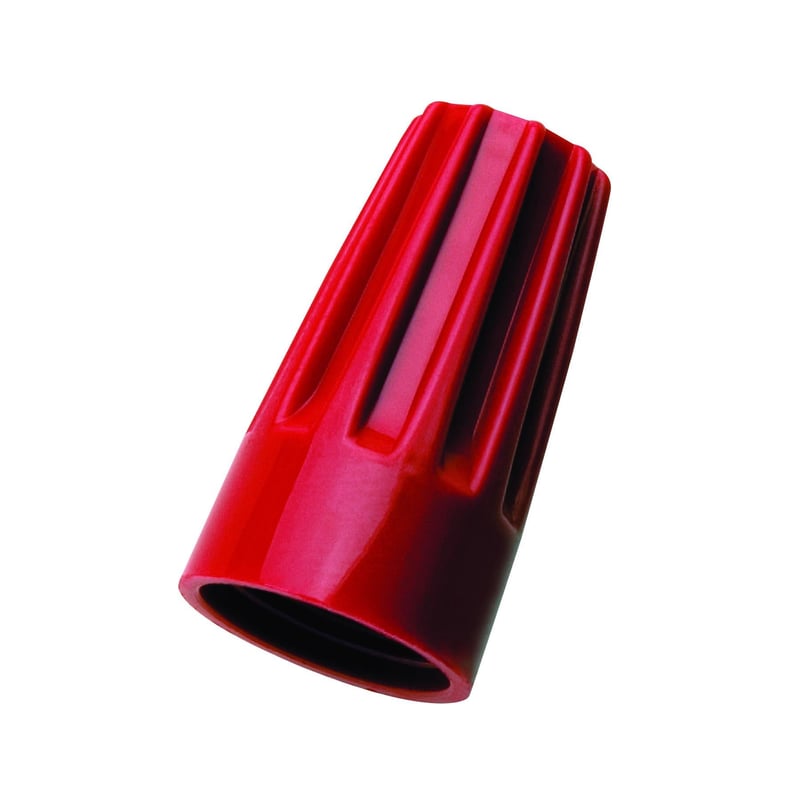

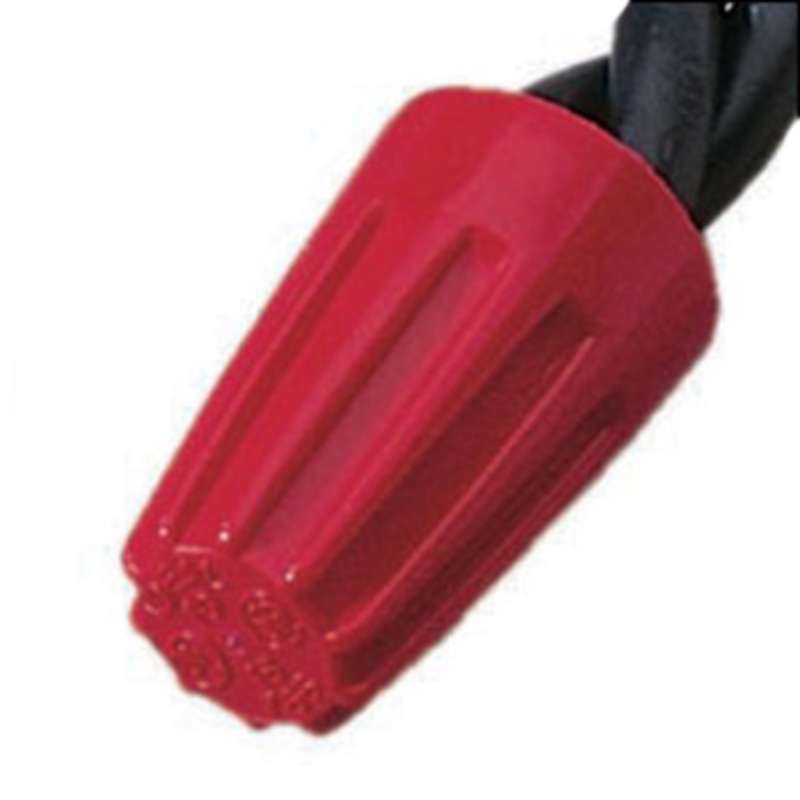

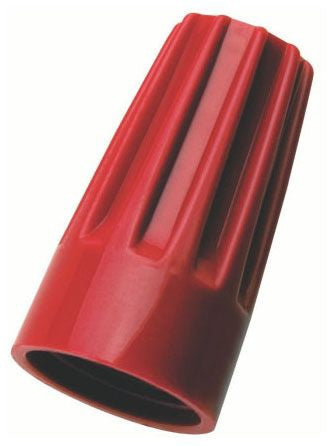

The Ideal Wire-Nut Connector, part number 30-076, features a twist-on design suitable for 18 to 12 American Wire Gauge (AWG) applications. It allows for quick and secure connections of one to six conductors. The connector is made from flame-retardant polypropylene and rated for 600 volts.

• Flame-retardant shell rated at 221 degrees Fahrenheit.
• Compatible with solid and stranded copper wires.
• Deep skirt design protects against arcing.

Product Highlights

The Ideal Wire-Nut is designed for easy installation with a positive grip. The refined wire range makes it ideal for both common and fine stranded wire applications.

Product Information

Standard Information

• Application: Insulating or joining 2 or more conductors.
• Type: Twist-On.

Technical Specifications

• Wire Size: 18 to 12 AWG.
• Voltage Rating: 600 VAC.
• Dimensions: 9/32 inches width x 1-1/16 inches height.
• Material: Polypropylene.
• Temperature Rating: 221 degrees Fahrenheit.
• Color: Red.
• Spring Type: Fixed/Square Wire.
• UPC: 783250300761.
