Product Description

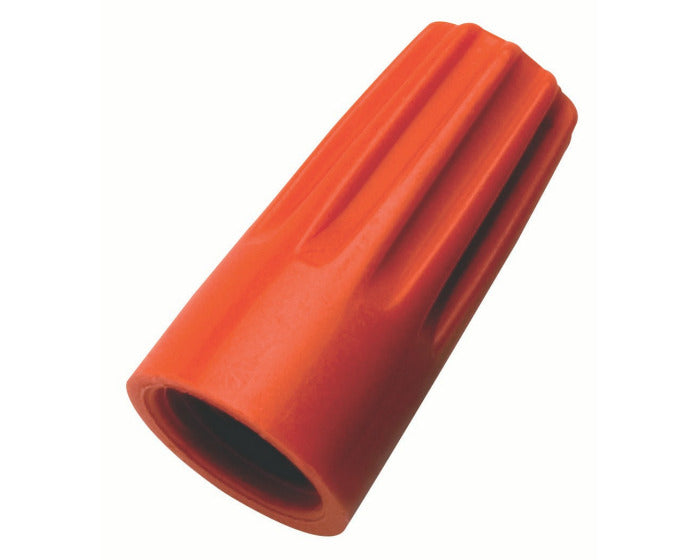

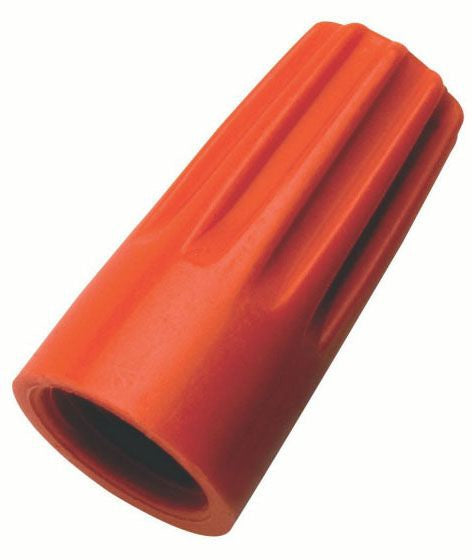

The Ideal Wire Connector, model 30-073J, is designed for reliable and secure connections in electrical wiring. This twist-on connector can accommodate one to five conductors with a wire range of twenty-two to fourteen AWG. The connector features a flame-retardant polypropylene shell suited for tough environmental conditions, making it a dependable choice for various applications.
- Made by Ideal Industries
- Rated for 600 volts
- Reusable design for easy circuit changes
Product Highlights
This wire connector offers a fixed, square-wire spring that creates its own threads, ensuring a tight grip that won't relax over time. The deep skirt design protects against flash-over and facilitates quick installation without pre-twisting.
Product Information
Standard Information
-
Brand: Ideal
-
Catalog Number: 30-073J
Technical Specifications
-
Conductor Range: 22 - 14 AWG, Min 1-18 w/2-20 MAX 2-14
-
Material: Flame-retardant polypropylene
-
Voltage Rating: 600 VAC
-
Number of Conductors: 1 to 5
-
Country of Origin: United States
-
Environmental Conditions: Tough, rated at 105°C (221°F)
-
UL Standard: UL 486C
-
Approval: CSA Certified to C22.2 #188
