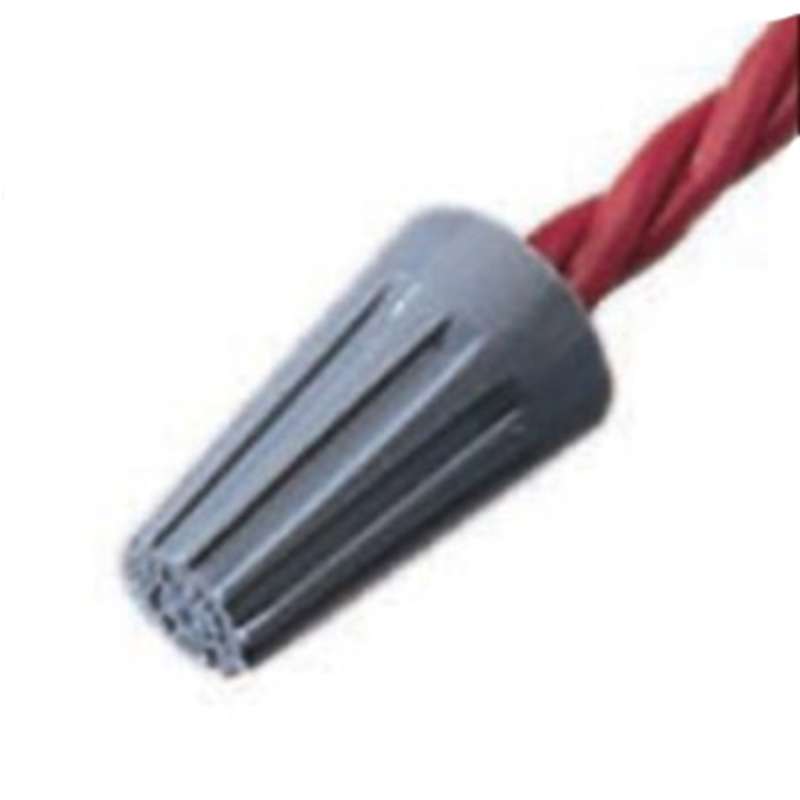

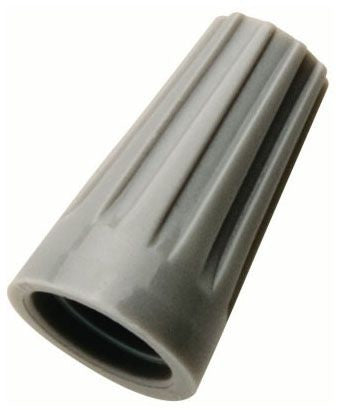

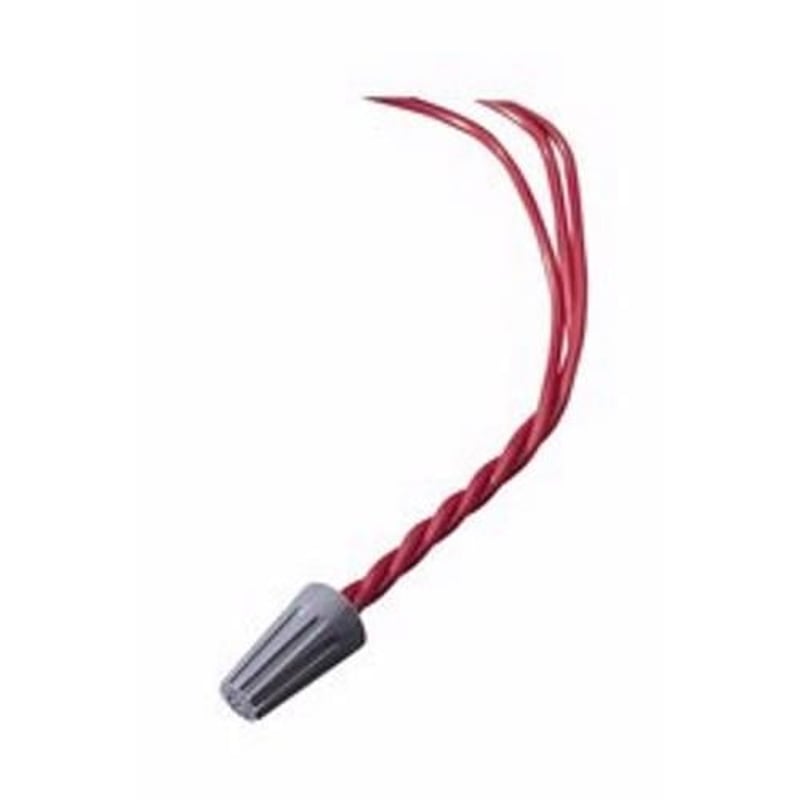

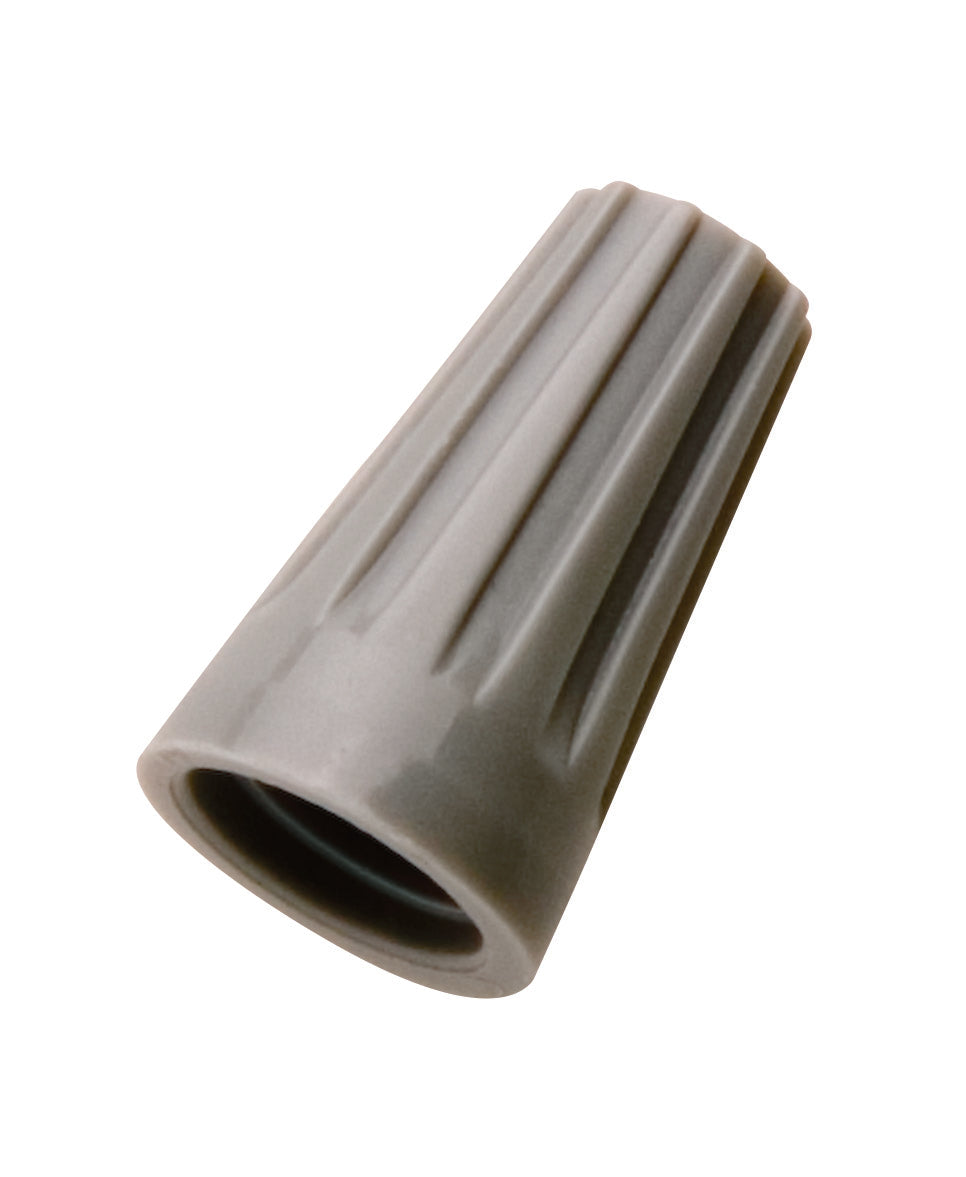

Product Description
The Ideal 30-071 Wire-Nut Wire Connector is designed for electrical connections between wires. This product is suitable for use with solid and stranded copper wire, complying with various safety standards. It features a twist-on design that provides a reliable connection.
- Fixed, square-wire spring creates secure threads
- No pre-twisting required, simplifying installation
- Flame-retardant shell, rated for harsh conditions
Product Highlights
This connector handles wire sizes from twenty-two to sixteen AWG and operates at a maximum voltage of three hundred volts. The thermoplastic shell is robust, making it reusable for circuit modifications.
Product Information
Standard Information
-
Manufacturer: Ideal Industries
-
Brand: Ideal
Technical Specifications
-
Type: Twist-On
-
Color: Gray
-
Material: Polypropylene
-
Voltage Rating: 300 V
-
Spring Type: Fixed/Square Wire
-
Dimensions: 21/64 in W x 37/64 in H
-
Temperature Rating: 221 deg F
-
Wire Size: 22 to 16 AWG
-
Application: Insulating or Joining Conductors
