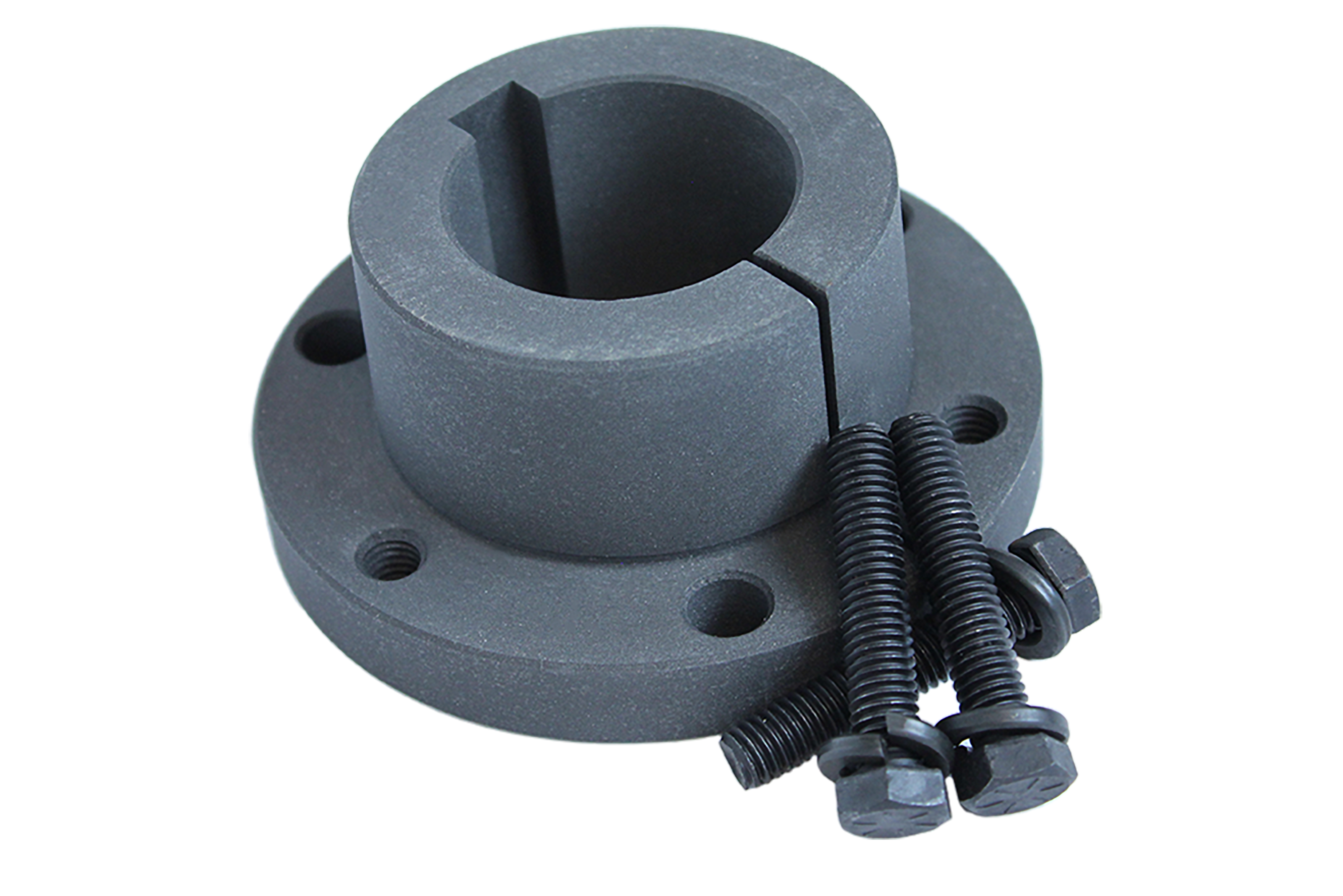

IDC Select SK-7/8 QD Bushing SK Series .875 in (7/8 in) Bore Diameter

Product Description

The IDC Select SK-7/8 QD Bushing features a bore diameter of .875 inches and is designed for effective power transmission. This bushing is made from durable materials, ensuring reliable performance in various applications. It is part of the SK series, providing a standard solution for many shaft bushing needs.

• Type: QD Bushing
• Three set screws for secure attachment
• 1.9375 inches in overall length

Product Highlights

Ideal for use in power transmission applications, this bushing provides a reliable connection between shafts and components.

Product Information

Standard Information

• Brand: IDC Select
• Manufacturer: IDC Select

Technical Specifications

• Type: QD Bushing
• Bore Diameter: .875 in (7/8 in)
• Hub Diameter: 2.812 in (2 13/16 in)
• Flange Diameter: 3.875 in (3 7/8 in)
• Overall Length: 1.9375 in (1 15/16 in)
• Screw Size: 5/16 x 2
• Flange Thickness: .5625 in (9/16 in)
• Number of Bolt Holes: 3
• Vendor SKU: SK-7/8
• UPC: 900000122699
