Product Description

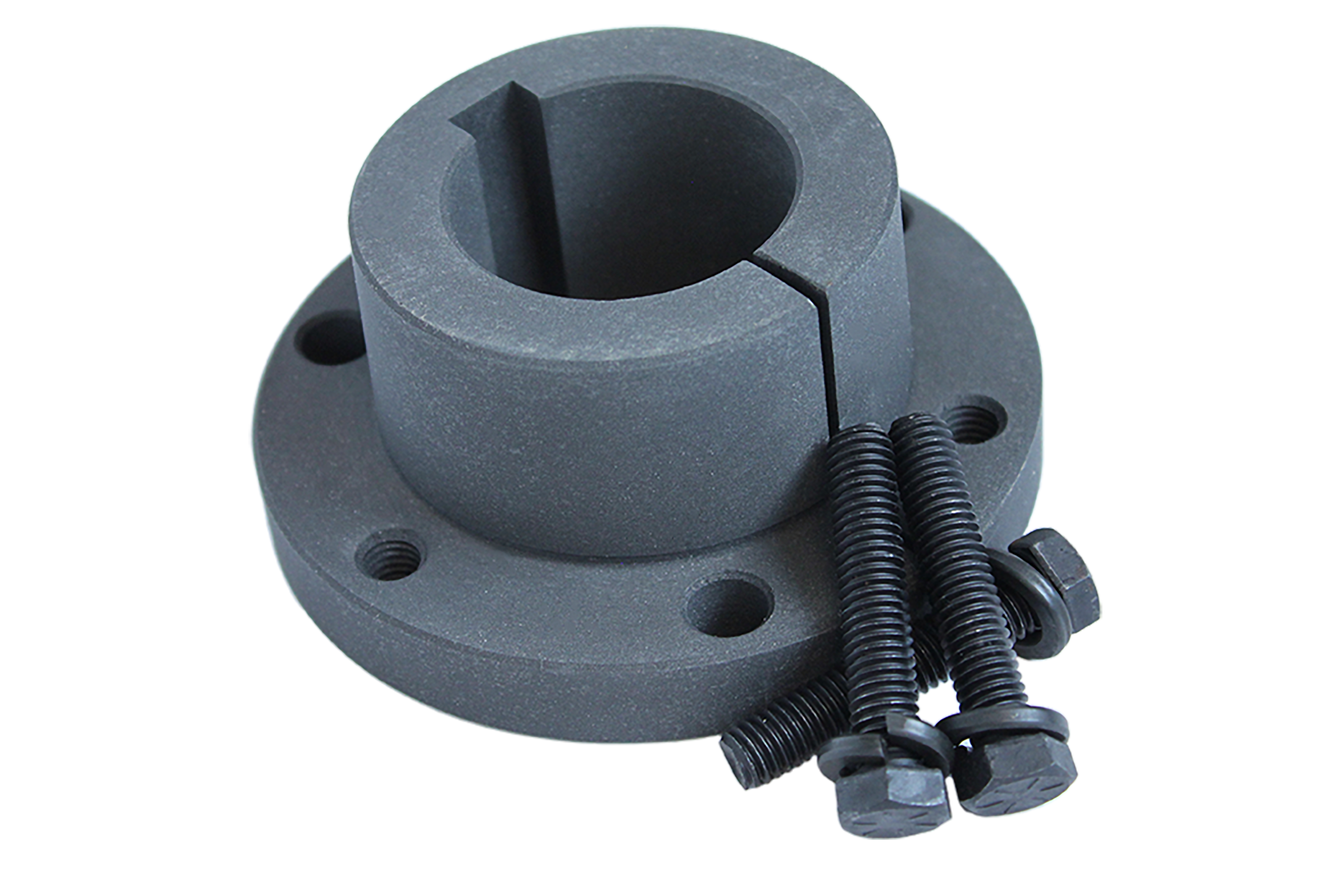

The IDC Select SF-2-1/8 QD Bushing is designed for power transmission applications. It features a bore diameter of two point one two five inches and a total length of three point eight seven five inches. This bushing is suitable for various machinery requiring reliable performance and quick installation.
- Bore Diameter: 2.125 inches (2 1/8 inches)
- Flange Diameter: 4.625 inches (4 5/8 inches)
- Overall Length: 3.875 inches (3 7/8 inches)
Product Highlights
This QD bushing provides ease of installation and maintenance. Key features include three set screws for secure fastening and compatibility with various shaft sizes, making it versatile for multiple applications.
Product Information
Standard Information
-
Brand: IDC Select
-
Type: QD Bushing
Technical Specifications
-
Bore Diameter: 2.125 inches (2 1/8 inches)
-
Flange Diameter: 4.625 inches (4 5/8 inches)
-
Overall Length: 3.875 inches (3 7/8 inches)
-
Hub Diameter: 3.125 inches (3 1/8 inches)
-
Flange Thickness: 0.625 inches (5/8 inches)
-
Screw Size: 3/8 x 2
-
Number of Bolt Holes: 3
-
Vendor SKU: SF-2-1/8
-
UPC: 900000124594
-
Manufacturer: IDC Select
-
Series: SF
