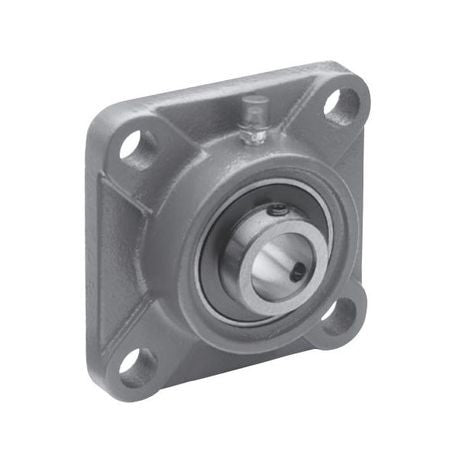

IDC Select IDCUCF209-27 IDC UCF Standard-Duty Flange Mount Ball Bearing Unit, 1-11/16 in Dia Bore, 4-9/64 in L Bolt Center-to-Center

Product Description

The IDC Select IDCUCF209-27 is a standard-duty flange mount ball bearing unit designed for various applications. This unit features a one and eleven-sixteenths inches bore diameter and a four-bolt square flange for secure mounting.

• Durable cast iron housing
• Self-aligning capabilities
• Grease fitting for maintenance

Product Highlights

This bearing unit is built for effective performance in demanding settings, ensuring reliability and longevity in use.

Product Information

Standard Information

• Brand: IDC Select
• MPN: IDCUCF209-27

Technical Specifications

• Bore Diameter: 1-11/16 in
• Overall Height: 5-13/32 in
• Overall Depth: 2-1/16 in
• Overall Length/Diameter: 5-13/32 in
• Temperature Rating: -40 to 250 deg F
• Load Capacity: 2877.55 lb Dynamic/4631.06 lb Static
• Locking Device: Set Screw
• Seal Material: Synthetic Rubber
