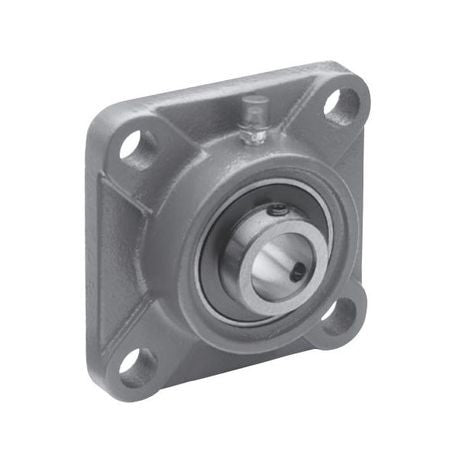

IDC Select IDCUCF208-40MM IDC UCF208-40MM UCF Standard-Duty Flange Mount Ball Bearing Unit, 40 mm Dia Bore, 102 mm L Bolt Center-to-Center, 4-Bolt Square Flange Mount

Product Description

The IDC Select IDC UCF208-40MM is a flange mount ball bearing unit designed for reliable performance. This unit features a forty millimeter diameter bore and is suited for various applications requiring quality bearings. The four-bolt square flange design allows for easy installation.

• Wide inner ring heat treated for durability
• Full self-alignment feature
• Grease fitting for lubrication

Product Highlights

This standard-duty flange mount bearing unit is ideal for light to medium duty applications. Its durable construction includes a cast iron housing and dual heavy duty seals for effective dust protection.

Product Information

Standard Information

• Brand: IDC Select
• Manufacturer: IDC Select

Technical Specifications

• Bore Diameter: 40 mm
• Overall Height: 130 mm
• Overall Length/Diameter: 130 mm
• Bolt Center-to-Center Length: 102 mm
• Load Capacity: 29.5 kN Dynamic / 18.1 kN Static
• Temperature Rating: -40 to 250 degrees F
• Flange Mounting Type: 4-Bolt Square
• Seal Material: Synthetic Rubber
