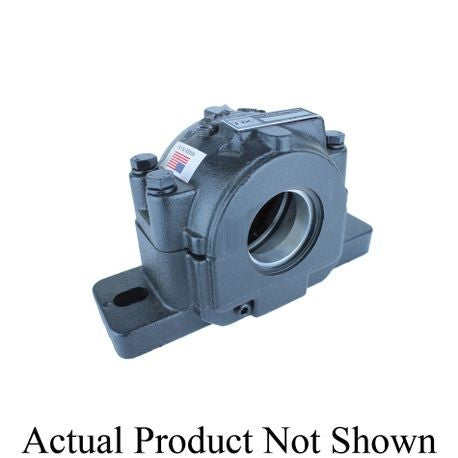

IDC Select IDCSAF517 SAF 500 Split Pillow Block Housing 2-15/16 in ID Two-Bolt Base Mount

Product Description

The IDC Select IDCSAF517 is a SAF 500 split pillow block housing designed for use with self-aligning ball or spherical roller bearings with adapter sleeves. These units feature a robust cast iron construction and are available with two-bolt and four-bolt base options. The design includes separate caps and bases for easy installation and maintenance.

• Suitable for grease or oil lubrication
• Adapter sleeve and bearing not included
• Convert from fixed to floating design by removing stabilizing ring

Product Highlights

This product is ideal for applications in power generation, mining, cement, metals, pulp, paper, and wastewater treatment.

Product Information

Standard Information

• Brand: IDC Select
• Application: Power Generation, Mining, Cement, Metals, Pulp, Paper, Waste Water Treatment

Technical Specifications

• Series: SAF 500
• Inside Diameter: 2-15/16 in
• Material: Cast Iron
• Overall Height: 7-5/16 in
• Overall Length: 13 in
• Overall Width: 4-13/16 in
• Base Width: 3-1/2 in
• Compatible Bearing Type: 2217K Self-Aligning Ball Bearing
• Base to Bore Centerline: 3-3/4 in
• Bolt Center-to-Center Length: 9-7/8 to 11 in
