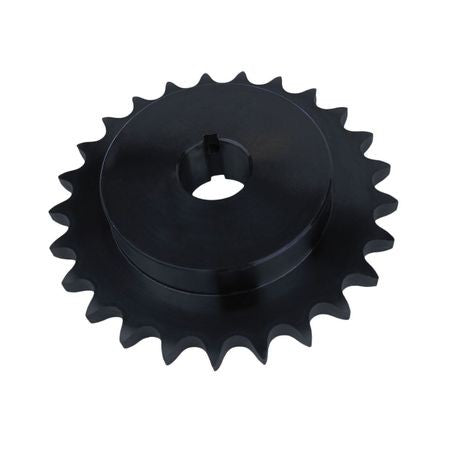

IDC Select IDCH60B15F-1-7/16 Finished Bore Type B Single Strand Roller Chain Sprocket

Product Description

IDC Select offers the IDCH60B15F-1-7/16 Finished Bore Type B Single Strand Roller Chain Sprocket. This sprocket is designed to work with a sixty chain and features a bore diameter of one and seven-sixteenths inches. The outer diameter is three point ninety-eight inches, and it has fifteen teeth with a pitch of three-fourths of an inch.

• Hardened teeth ensure prolonged usage.
• Bored to size for easy installation.
• Constructed from durable C1045 steel.

Product Highlights

This sprocket is suitable for power distribution applications where roller chains are utilized, providing reliable performance and longevity.

Product Information

Standard Information

• Brand: IDC Select
• Manufacturer: IDC Select

Technical Specifications

• Type: Finished Bore Type B
• Bore Diameter: 1-7/16 inches
• Outside Diameter: 3.98 inches
• Number of Teeth: 15
• Pitch: 3/4 inches
• Material: C1045 Steel
• Finish: Black Oxide
• Includes: (2) Setscrews
• UNSPSC: 31171901
