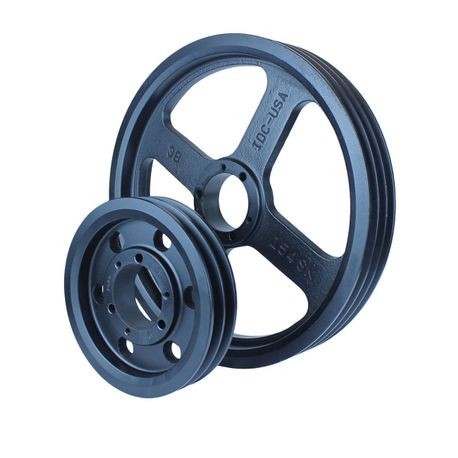

IDC Select IDC2BK090H Light Duty Type 3 Sheave 8-3/4 in OD 2 Grooves 8.4 in Dia Pitch

Product Description

The IDC Select IDC2BK090H is a light-duty Type 3 sheave designed for various applications. It features an outside diameter of eight and three-quarters inches and two grooves suitable for use with cross-section V-belts. This sheave is ideal for air handling, mining, and industrial processes.

• Precision machined from Class 25 cast iron
• Designed for H design bushings
• Compatible with A-B and 3L-4L-5L belts

Product Highlights

This sheave is designed for load distribution and movement in numerous industries, ensuring reliability and performance.

Product Information

Standard Information

• Brand: IDC Select
• Manufacturer: IDC Select

Technical Specifications

• Number of Grooves: 2
• Pitch Diameter: 8.4 in
• Overall Length: 1-3/4 in
• Outside Diameter: 8-3/4 in
• Finish: Baked Enamel
• Bushing Type: H
• Material: Class 25 Cast Iron
• Face Width: 1-3/4 in
• Suitable For Use With: 4L/A and 5L/B Cross Section V-Belts
• Applications: Air Handling, Mining, Wood Processing, Agriculture, Aggregate, Oilfield, Air Compressor and Industrial Applications
• Standard & Approvals: ASTM Specified | SAE Standard
