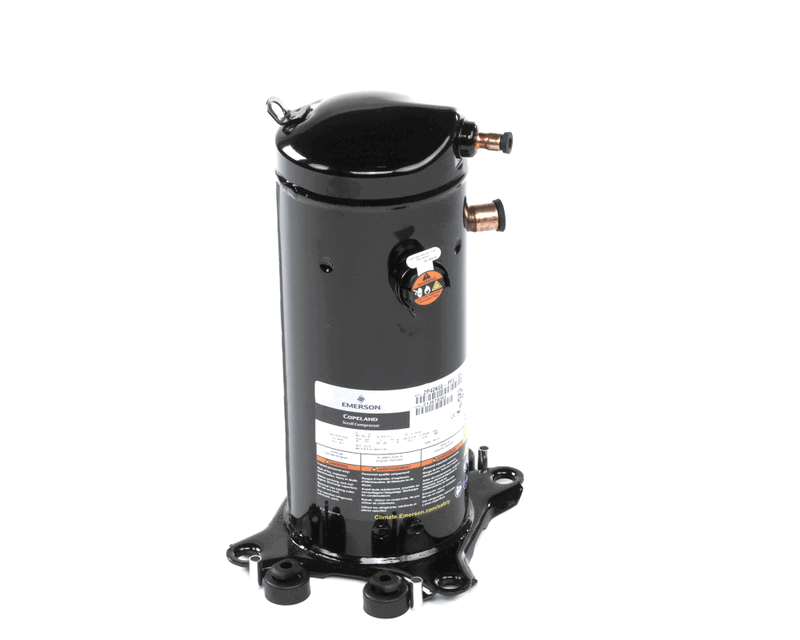

Icp zp40k6e-pfv-830 Scroll Compressor 40000 Btu R410A

Product Description

The INTERNATIONAL COMFORT PRODUCTS zp40k6e-pfv-830 is a scroll compressor designed for residential and light-commercial air conditioning and heat pump systems. It operates on R410A refrigerant at 208-230 volts, 60 Hz, single-phase power, and delivers 40,000 BTU/h of cooling capacity. Scroll compressors use two interleaved spiral elements to compress refrigerant with fewer moving parts than reciprocating designs, resulting in quieter operation and consistent pressure output. This is a genuine OEM replacement part engineered to original factory specifications. At 60 pounds and measuring 20 inches in length by 12 inches wide by 12 inches tall, it is a substantial component requiring proper handling and recovery equipment during service.

This compressor is suited for split-system air conditioners and heat pumps operating on single-phase 208-230 volt service. Typical installation scenarios include residential central air systems and light-commercial packaged or split equipment where R410A is the system refrigerant. Licensed HVAC technicians performing compressor replacements on cooling-only or heat pump systems in the 3-ton nominal capacity range will find this unit appropriate for those applications.

Key Features

• 40,000 BTU/h cooling capacity in a scroll-compressor design
• R410A refrigerant compatible — no ozone-depleting chlorine content
• 208-230V single-phase, 60 Hz electrical configuration
• Genuine OEM replacement part built to original factory specifications
• Scroll mechanism provides fewer moving parts versus reciprocating compressors

Compatibility

Designed as a genuine OEM-style replacement scroll compressor for R410A air conditioning and heat pump systems requiring a single-phase 40,000 BTU/h compressor at 208-230 volts, 60 Hz.

Installation Notes

Compressor replacement must be performed by an EPA Section 608 certified HVAC technician using certified refrigerant recovery equipment before opening the system. Disconnect and lock out all electrical power to the unit before beginning work. Verify system refrigerant type, voltage, and phase configuration match this compressor before installation. Follow local mechanical codes and the manufacturer service documentation for oil charge, line flushing, and evacuation procedures.

Technical Specifications

• Cooling Capacity: 40,000 BTU/h
• Refrigerant: R410A
• Voltage: 208-230 volts
• Frequency: 60 Hz
• Phase: 1-Phase
• Compressor Type: Scroll
• Length: 20 inches
• Width: 12 inches
• Height: 12 inches
• Weight: 60 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: zp40k6e-pfv-830
