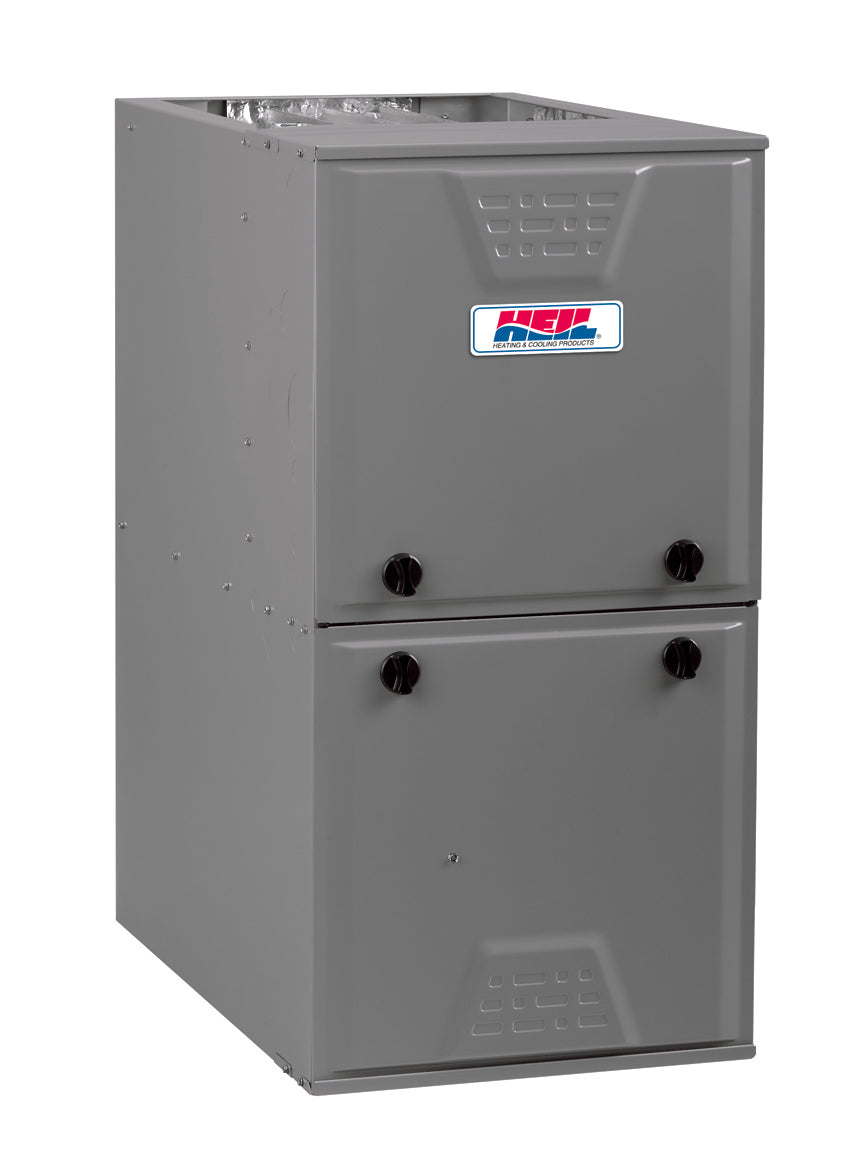

Icp N96VSN0801716A 80000 Btu 96% Afue Single Stage Furnace

Product Description

The INTERNATIONAL COMFORT PRODUCTS N96VSN0801716A is a 96% AFUE single-stage natural gas furnace rated at 80,000 BTU/h. Designed for residential forced-air heating systems, it delivers high-efficiency combustion in a 17-inch wide cabinet, making it a practical fit for utility closets, alcoves, and equipment rooms where horizontal space is limited. The non-communicating control configuration means it integrates with standard thermostat wiring without requiring a proprietary communicating system bus. At 147 pounds, the unit falls within the handling range for a two-technician install crew. Licensed HVAC technicians handle sizing, venting, and commissioning on this class of equipment.

The N96VSN0801716A is sized for residential applications requiring up to 4-ton airflow capacity. Its 17-inch cabinet width suits replacement and new-construction installs in spaces where full-width furnace cabinets do not fit. The single-stage gas valve operates at one fixed firing rate, providing straightforward control logic compatible with conventional single-stage thermostats. The 96% AFUE rating meets current high-efficiency requirements for most Northern U.S. climate zones, making it a common choice for energy-code-compliant installations.

Key Features

• 96% AFUE rating for high-efficiency residential heating performance
• 80,000 BTU/h heating capacity suitable for mid-to-large residential loads
• 17-inch wide cabinet fits space-constrained mechanical rooms and closets
• Single-stage, non-communicating control logic compatible with standard thermostats
• 4-ton rated airflow capacity matches common residential cooling equipment pairings

Compatibility

Designed as an OEM-style high-efficiency single-stage gas furnace replacement or new-installation unit for residential forced-air systems requiring an 80,000 BTU/h, 96% AFUE, 17-inch wide cabinet configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Fuel Gas Code (NFPA 54) and all applicable local mechanical codes. Shut off gas supply and disconnect electrical power before beginning any service or replacement work on the existing system. This furnace requires a condensate drainage system appropriate for a 96% AFUE unit. Verify vent pipe sizing, combustion air requirements, and gas line capacity before startup.

Technical Specifications

• Heating Capacity: 80,000 BTU/h
• AFUE: 96%
• Configuration: Single Stage, Non-Communicating
• Airflow Capacity: 4 Ton
• Cabinet Width: 17 inches
• Dimensions (L x W x H): 19 x 38 inches
• Weight: 147 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N96VSN0801716A
