Icp N96VSN0601716B Gas Furnace 60000 Btu/h 96% Afue

Product Description

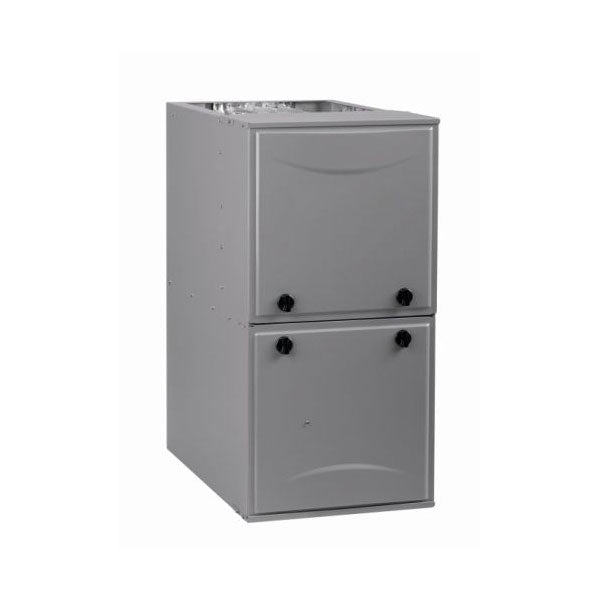

The INTERNATIONAL COMFORT PRODUCTS N96VSN0601716B is a 96% AFUE variable-speed gas furnace rated at 60,000 BTU/h. It delivers high-efficiency heating through a condensing heat exchanger design that recovers additional heat from flue gases, reducing fuel consumption compared to standard-efficiency units. At 17.5 inches wide, this furnace fits into tight utility closets and alcove installations where larger cabinets will not clear. Licensed HVAC technicians install and commission this unit in residential forced-air heating systems.

This furnace is sized for residential applications requiring a 60,000 BTU/h heating capacity and is rated for up to 3.5 tons of matched cooling equipment. The 17.5-inch cabinet width makes it a practical fit for replacement or new-construction installs in homes where cabinet depth and width constraints limit equipment selection. The 96% AFUE rating qualifies this unit for markets and utility programs with high-efficiency requirements.

Key Features

• 96% AFUE rating for high-efficiency heating performance
• 60,000 BTU/h heating capacity suitable for small to medium residential loads
• 17.5-inch cabinet width fits narrow closet and alcove installations
• Variable-speed blower motor for enhanced comfort and quiet operation
• Condensing design extracts additional heat from combustion gases

Compatibility

Designed as an OEM-style residential gas furnace for forced-air heating systems; consult the equipment documentation for approved matched coil and air handler configurations up to 3.5 tons.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with local mechanical codes and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power before beginning any service or replacement work. Condensing furnaces require a Category IV vent system with approved PVC or CPVC flue piping and a condensate drain line; follow IFGC requirements for sizing and routing. Do not reuse existing B-vent or single-wall metal flue pipe with this condensing appliance.

Technical Specifications

• Heating Capacity: 60,000 BTU/h
• AFUE: 96%
• Cabinet Width: 17.5 inches
• Dimensions (L x W x H): 75 x 17.5 x 35 inches
• Weight: 175 pounds
• Cooling Capacity (matched): 3.5 tons

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N96VSN0601716B
