Icp N92MSN1002122A Gas Furnace 92% Afue 100000 Btu/h

Product Description

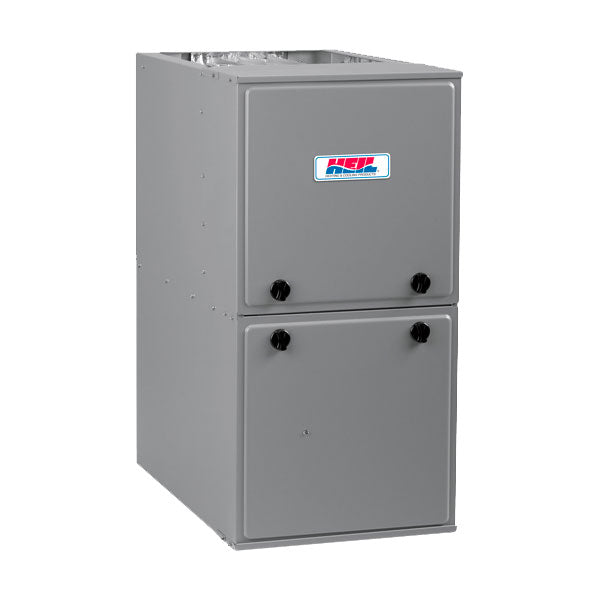

The INTERNATIONAL COMFORT PRODUCTS N92MSN1002122A is a single-stage, 92% AFUE natural gas furnace rated at 100,000 BTU/h output. It is designed for residential forced-air heating systems and sized for applications requiring up to 5.5 tons of matched cooling capacity. Operating on 115 volts, this unit is built for permanent installation in a dedicated furnace cabinet with a width of 21 inches. Licensed HVAC technicians install and commission this furnace as part of a split or packaged gas heating system. The 92% AFUE rating means the unit converts 92 cents of every dollar of gas consumed into usable heat, meeting common minimum efficiency standards in many jurisdictions.

The N92MSN1002122A is suited for residential installations where a single-stage gas valve and multi-speed blower motor (MCT) configuration meets the load requirements. The 21-inch cabinet width fits standard residential furnace closets and utility rooms. At 100,000 BTU/h, this furnace is appropriate for larger homes or structures with higher heating loads. It is designed to pair with a matched evaporator coil and condensing unit rated up to 5.5 tons for year-round comfort systems. This unit falls under the Heil brand family distributed through ICP.

Key Features

• 92% AFUE single-stage gas furnace for consistent, efficient heat output
• 100,000 BTU/h heating capacity for larger residential applications
• Multi-speed blower motor (MCT) supports variable airflow for heating and cooling modes
• 5.5-ton matched cooling capacity rating for full-system compatibility
• 21-inch cabinet width fits standard residential furnace enclosures
• 115-volt single-phase power supply — standard residential electrical service

Compatibility

Designed as an OEM residential gas furnace within the ICP and Heil product family, model group N92MSN. Intended for use with matched evaporator coils and condensing units rated up to 5.5 tons. Consult ICP system design guides for approved coil and air handler pairings.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the International Fuel Gas Code (IFGC), local mechanical codes, and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power before servicing or replacing any components. The unit requires proper venting per the manufacturer specifications — confirm vent category and material before installation. Do not attempt to modify the gas valve, heat exchanger, or factory wiring.

Technical Specifications

• AFUE: 92%
• Heating Capacity: 100,000 BTU/h
• Tonnage (Matched Cooling): 5.5 tons
• Voltage: 115 volts
• Cabinet Width: 21 inches
• Stages: Single-stage
• Blower Motor Type: Multi-speed (MCT)
• Weight: 167.5 pounds
• Product Category: Gas Furnace

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N92MSN1002122A
