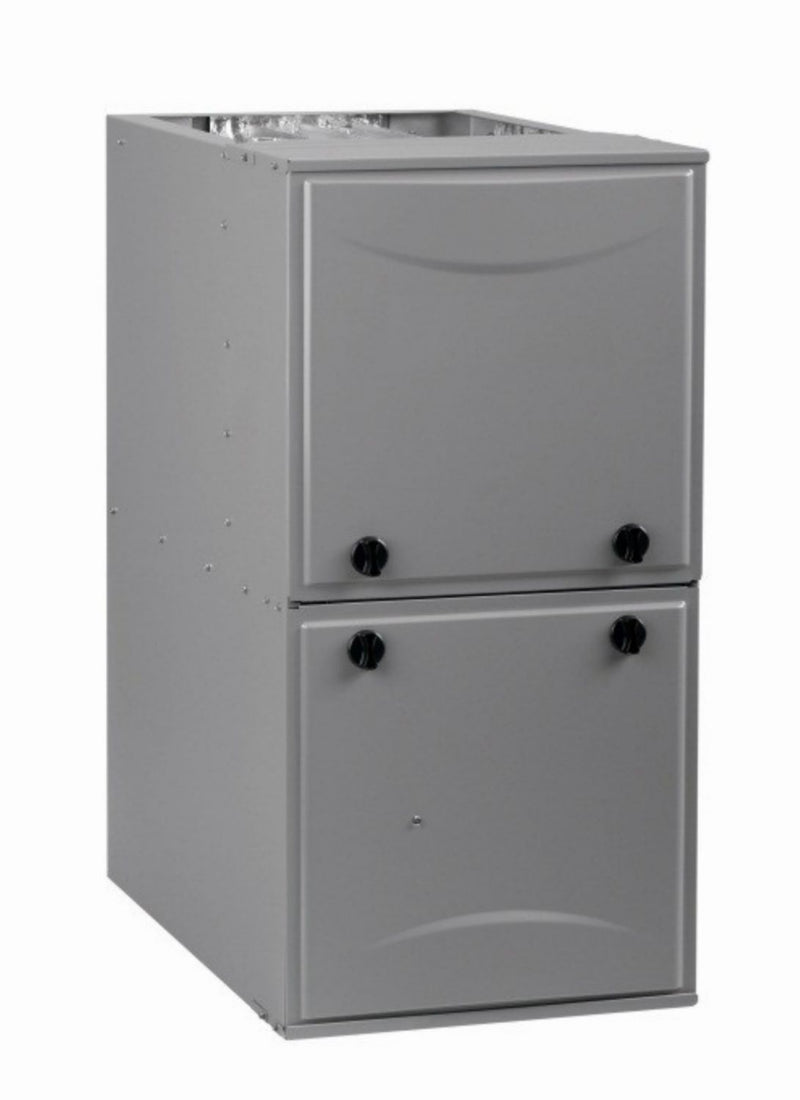

Icp n92msn0401412a 40K Btu Single Stage Gas Furnace Ecm

Product Description

The INTERNATIONAL COMFORT PRODUCTS n92msn0401412a is a single-stage, condensing gas furnace rated at 40,000 BTU/h with a 92.1% AFUE efficiency rating. It runs on a 1/2 horsepower ECM blower motor and delivers up to 1,090 CFM of airflow. The unit operates on 115 volts, single phase, and uses silicon nitride direct ignition for reliable startup. Designed for installation by licensed HVAC contractors, this furnace is part of the Performance Series and is built around a stainless steel heat exchanger for durability and long service life. It is Energy Star compliant and supports both natural gas and propane fuel sources.

This furnace is configured for downflow, upflow, horizontal left, and horizontal right installations, making it adaptable across a wide range of residential and light commercial applications. The multi-speed ECM blower provides quiet, efficient airflow management. Direct vent configuration keeps combustion air and exhaust separate from conditioned space air. The unit is compatible with R-410A and R-454B refrigerant systems on paired cooling equipment. Installation is limited to select service areas and must be performed by a licensed HVAC contractor per local code requirements.

Key Features

• 92.1% AFUE condensing efficiency with Energy Star compliance
• ECM blower motor at 1/2 hp with multi-speed operation and 1,090 CFM capacity
• Silicon nitride direct ignition system for consistent, reliable startup
• Stainless steel heat exchanger for corrosion resistance and longevity
• Four-way installation flexibility: downflow, upflow, horizontal left, horizontal right
• Compatible with both natural gas and propane; supports R-410A and R-454B refrigerants on matched systems

Compatibility

Designed as a Performance Series OEM replacement and new-installation condensing gas furnace. Compatible with R-410A and R-454B refrigerant systems on matched cooling equipment. Contact your local branch to confirm availability and compatible system configurations in your service area.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with ANSI Z223.1 and all applicable local codes. Shut off gas supply and disconnect electrical power before beginning any service or installation work. Verify venting configuration and ductwork sizing prior to startup. Maximum fuse or circuit breaker size is 15 amps at 115 volts.

Technical Specifications

• BTU Heat Rating: 40,000 BTU/h
• AFUE: 92.1%
• Horsepower: 1/2 hp
• Blower Type: ECM Multi-Speed
• CFM: 1,090 ft3/min
• Voltage: 115 volts
• Amperage: 10.2 / 6.7 / 7.4 amps
• Max Fuse Size: 15 amps
• Phase: Single Phase
• Gas Valve Stages: Single-Stage
• Fuel Type: Natural Gas, Propane
• Ignition System: Silicon Nitride Direct Ignition
• Heat Exchanger Type: Stainless Steel
• Vent Type: Direct Vent
• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Refrigerant Compatibility: R-410A, R-454B
• Temperature Range: 35 to 65 degrees F
• Height: 35 inches
• Width: 14.19 inches
• Depth: 29.5 inches
• Weight: 117 pounds
• ANSI Standard: ANSI Z223.1
• Energy Star Compliant: Yes
• Collection: Performance Series
• Communicating: Non-Communicating

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: n92msn0401412a
