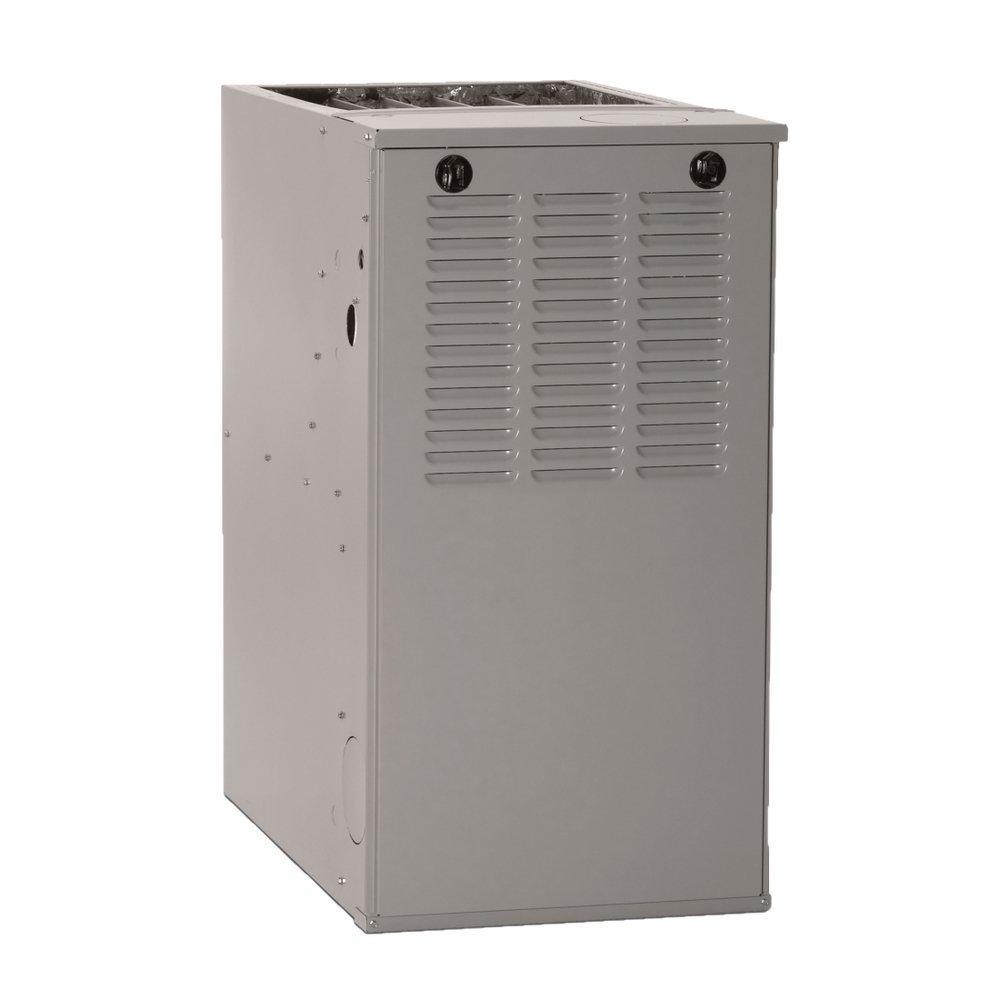

Icp n80vsl0702120a 80% Afue 70K Btu Ecm Gas Furnace

Product Description

The INTERNATIONAL COMFORT PRODUCTS n80vsl0702120a is an 80 percent AFUE single-stage gas furnace built for residential installations requiring flexible configuration and efficient airflow management. Rated at 70,000 BTU input and 66,000 BTU/h heat output, it uses a multi-speed ECM blower motor to deliver consistent airflow at up to 1,425 CFM while minimizing electrical draw. A 1 horsepower motor and direct ignition system round out the core mechanical package. The fully insulated cabinet reduces heat loss before conditioned air reaches the ductwork. This unit is designed to be installed and serviced by licensed HVAC technicians.

The n80vsl0702120a supports downflow, upflow, horizontal left, and horizontal right configurations, making it adaptable to a wide range of residential installation layouts including attics, basements, closets, and utility rooms. It operates on natural gas or propane, and is dual-fuel capable when paired with a compatible heat pump and thermostat. The unit is compatible with air purifiers and humidifiers, and accepts B-vent venting. It carries a 10-year parts limited warranty upon timely registration and a 20-year limited heat exchanger warranty.

Key Features

• 80 percent AFUE efficiency with 70,000 BTU input and 66,000 BTU/h output
• Multi-speed ECM blower motor rated at 1 horsepower and up to 1,425 CFM
• Single-stage gas valve compatible with natural gas and propane fuel sources
• Dual-fuel capable with a compatible heat pump and thermostat
• Four installation configurations: downflow, upflow, horizontal left, horizontal right
• Aluminized steel heat exchanger with 20-year limited warranty
• Air purifier and humidifier compatible with fully insulated cabinet

Compatibility

Designed as an OEM-style residential gas furnace supporting up to 5 tons of cooling capacity when matched with a compatible air handler or coil system. Dual-fuel operation requires a compatible heat pump and thermostat; consult system documentation before pairing.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with ANSI Z223.1 and all applicable local codes. Shut off gas supply and disconnect electrical power before beginning any service or installation work. Verify vent sizing and B-vent clearances per manufacturer instructions and local mechanical codes before commissioning. Do not connect to venting systems not rated for this appliance type.

Technical Specifications

• AFUE: 80 percent
• BTU Input: 70,000 BTU
• BTU Heat Rating: 66,000 BTU/h
• Gas Valve Stages: Single-Stage
• Blower Type: ECM
• Fan Speeds: Variable
• Horsepower: 1 hp
• CFM: 1,425 CFM
• Voltage: 24/115 volts
• Amperage: 12, 13.2, 17.3 amps
• Max Fuse Size: 20 amps
• Phase: Single Phase
• Fuel Type: Natural Gas, Propane
• Ignition System: Direct Ignition
• Vent Type: B-Vent
• Heat Exchanger Material: Aluminized Steel
• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Tonnage: 5 Ton
• Temperature Range: 25 to 55 degrees F
• Height: 33.33 inches
• Width: 21 inches
• Depth: 29 inches
• Weight: 137 pounds
• ANSI Standard: ANSI Z223.1
• Parts Warranty: 10-year limited upon timely registration
• Heat Exchanger Warranty: 20-year limited

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: n80vsl0702120a
