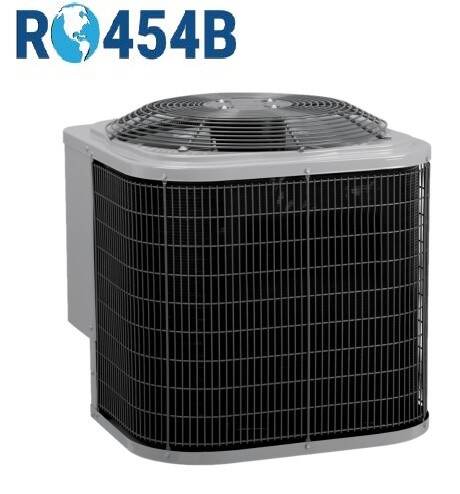

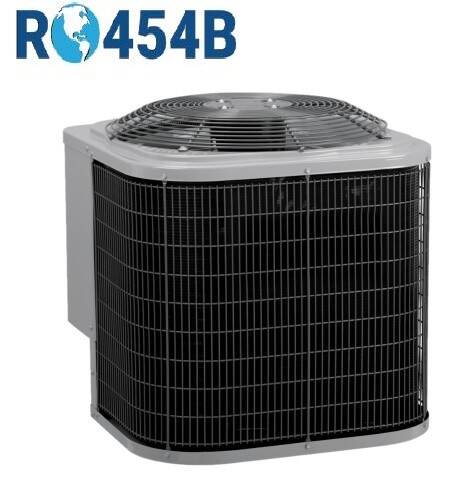

Icp N5H5S42CKAAA Heat Pump Condenser 3.5 Ton 14.3 Seer R454B

Product Description

The INTERNATIONAL COMFORT PRODUCTS N5H5S42CKAAA is a 3.5-ton single-stage heat pump condensing unit rated at 14.3 SEER and designed for split-system residential cooling and heating applications. Operating on 208/230-volt, single-phase power, it uses R454B refrigerant, a non-ozone-depleting refrigerant with low global warming potential. The unit is built around a scroll compressor and features an internal pressure relief valve and internal thermal overload protection for added reliability. Heavy-gauge sheet metal construction and a dense wire coil guard provide durable weather resistance in outdoor installations. Licensed HVAC technicians install and commission this unit.

The N5H5S42CKAAA is suited for residential split-system applications where a 3.5-ton cooling and heating load is required. It delivers 42,000 BTU/h in both cooling and heating modes and is rated across a SEER2 range of 13.8 to 17.0 and an EER2 range of 11.2 to 14.5, depending on the matched indoor system configuration. The unit supports programmable or standard thermostat controls and is compatible with indoor air quality accessories. It is intended for standard outdoor pad or platform installations where single-phase utility power is available.

Key Features

• 3.5-ton capacity with 42,000 BTU/h cooling and heating output
• R454B refrigerant — non-ozone depleting with low global warming potential
• Scroll compressor for efficient, low-vibration operation
• Internal pressure relief valve and thermal overload protection
• Filter drier included for refrigerant circuit protection
• Dense wire coil guard and solid sheet metal cabinet for outdoor durability
• Compatible with programmable or standard thermostat controls

Compatibility

Designed as an OEM split-system heat pump condensing unit requiring a matched indoor air handler or coil assembly rated for R454B refrigerant and single-phase, 208/230-volt operation. Consult manufacturer's expanded ratings tables to confirm matched indoor system performance and SEER2 compliance.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle A2L refrigerants per current EPA Section 608 requirements and applicable local codes. Disconnect and lock out all electrical power before making refrigerant, electrical, or mechanical connections. The unit must be mounted on a level outdoor pad or platform with adequate clearance on all sides per the manufacturer's installation instructions. Do not operate the unit without verifying proper refrigerant charge and confirming the matched indoor system is correctly sized and installed.

Technical Specifications

• Cooling Capacity: 42,000 BTU/h
• Heating Capacity: 42,000 BTU/h
• Nominal Tonnage: 3.5 tons
• SEER: 14.3
• SEER2 Range: 13.8 - 17.0
• EER2 Range: 11.2 - 14.5
• Voltage: 208/230 volts
• Phase: Single
• Refrigerant: R454B
• Compressor Type: Scroll
• Stages: 1

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N5H5S42CKAAA
