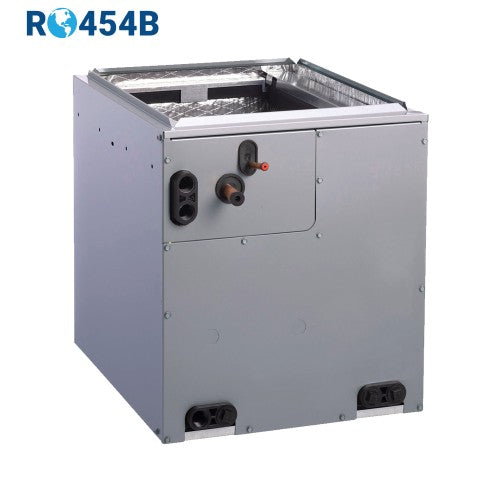

Icp MEVM5X42M21A 3.5 Ton R-454B Aluminum V-evaporator Coil

Product Description

The INTERNATIONAL COMFORT PRODUCTS MEVM5X42M21A is a 3.5-ton aluminum V-configuration evaporator coil designed for use with R-454B refrigerant in multi-position split-system applications. This coil sits in the indoor air handler or furnace cabinet, absorbing heat from return air before it circulates back through the conditioned space. Rated at 3.5 tons of cooling capacity, it is compatible with R-454B, a lower-GWP A2L refrigerant now common in modern residential and light-commercial HVAC systems. Licensed HVAC technicians handle installation and commissioning. The aluminum coil construction resists corrosion and reduces overall weight compared to copper-fin assemblies.

This evaporator coil is suited for residential and light-commercial split-system air conditioning and heat pump installations requiring a V-coil configuration. The multi-position design allows installation in upflow, downflow, or horizontal air handler configurations depending on the cabinet orientation. It is intended for new installations and direct replacements in systems matched to R-454B refrigerant handling equipment. Contractors working on systems transitioning to A2L refrigerants will find this coil consistent with current equipment requirements.

Key Features

• 3.5-ton rated cooling capacity for residential and light-commercial systems
• Designed for R-454B refrigerant, a lower-GWP A2L replacement refrigerant
• V-coil configuration provides high surface area in a compact cabinet footprint
• Aluminum construction reduces weight and offers corrosion resistance
• Multi-position design supports upflow, downflow, and horizontal installations

Compatibility

Designed as an OEM-style replacement evaporator coil for multi-position split-system air conditioning and heat pump applications using R-454B refrigerant at 3.5-ton capacity.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician qualified to handle A2L refrigerants. Shut off all electrical power and allow system pressure to equalize before disconnecting refrigerant lines. Follow current ASHRAE 15, local mechanical codes, and manufacturer guidelines for A2L refrigerant handling and leak detection requirements. Verify cabinet dimensions and metering device compatibility before installation.

Technical Specifications

• Tonnage: 3.5 tons
• Refrigerant: R-454B
• Coil Configuration: V-Coil
• Fin Material: Aluminum
• Position: Multi-Position
• Weight: 44 pounds
• Product Series: EVM5X
• Category: Evaporator Coil

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: MEVM5X42M21A
