Icp H4H5S60AKAAA 5 Ton 15 Seer Heat Pump R-410A

Product Description

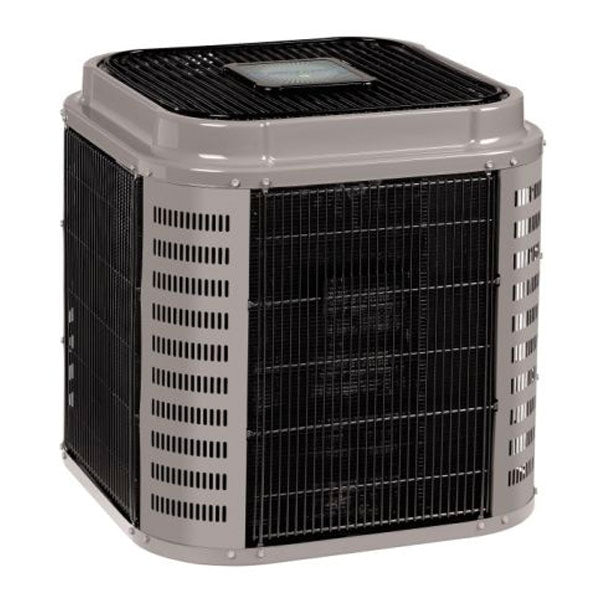

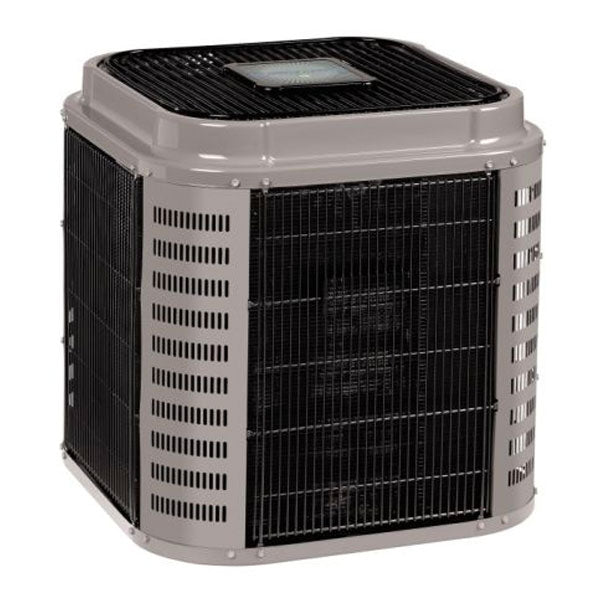

The INTERNATIONAL COMFORT PRODUCTS H4H5S60AKAAA is a single-stage, 5-ton residential heat pump rated at 15 SEER, designed for split-system heating and cooling applications. Operating on R-410A refrigerant and wired for 208/230-volt service, this unit delivers efficient year-round comfort control in a single-speed compressor configuration. The ION system designation indicates compatibility with advanced communicating controls. Licensed HVAC technicians handle installation, startup, and refrigerant work on this class of equipment. It is suited for residential and light-commercial applications where a reliable, code-compliant heat pump is required.

This unit is built for ducted split-system installations in residential settings. The 5-ton capacity targets larger homes or applications requiring substantial heating and cooling capacity. Running on R-410A, it meets current refrigerant standards. The 208/230-volt single-phase electrical requirement is standard for residential split-system heat pumps in this capacity range. The single-stage compressor operation provides straightforward, reliable cycling. Installers should pair this outdoor unit with a compatible air handler or coil and a matching communicating or conventional thermostat depending on the control system in use.

Key Features

• 15 SEER efficiency rating for reduced operating costs versus lower-rated equipment
• 5-ton nominal cooling and heating capacity for larger residential loads
• Single-stage compressor operation for straightforward system control and maintenance
• R-410A refrigerant — compliant with current environmental and equipment standards
• 208/230-volt operation standard for residential split-system installations in this tonnage range
• ION system designation indicating compatibility with communicating control platforms

Compatibility

Designed as an OEM split-system heat pump for use in ducted residential HVAC systems requiring a 5-ton, 15 SEER, R-410A outdoor unit. Specific compatible air handlers, coils, and control systems were not provided in the product data — consult the manufacturer installation documentation for approved matched assemblies.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification for refrigerant handling. Disconnect and lock out all electrical power before servicing the unit or making refrigerant connections. The outdoor unit must be installed on a level pad, properly grounded, and connected per NEC requirements and all local codes. Do not operate the unit without verifying correct refrigerant charge, airflow, and electrical supply voltage at startup.

Technical Specifications

• Product Type: Heat Pump
• Refrigerant: R-410A
• SEER: 15
• Nominal Tonnage: 5 tons
• Voltage: 208/230 volts
• Compressor Stages: Single Stage
• UPC: 81007417566

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: H4H5S60AKAAA
