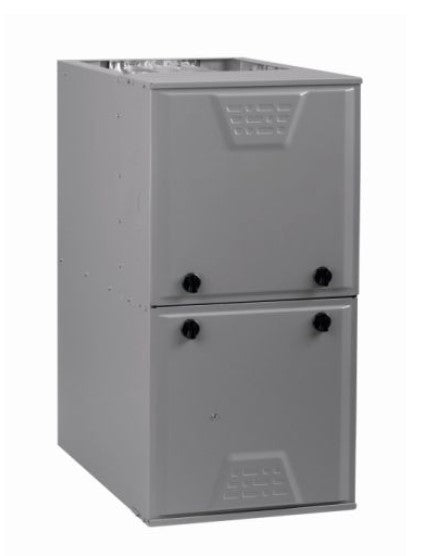

Icp g97cmn1002122b 100000 Btu/h 97% Afue Modulating Gas Furnace

Product Description

The INTERNATIONAL COMFORT PRODUCTS g97cmn1002122b is a high-efficiency modulating gas furnace rated at 100,000 BTU/h with a 97% AFUE rating. It features an ECM (electronically commutated motor) blower and a multi-position design, allowing installation in upflow, downflow, or horizontal configurations. The modulating gas valve adjusts heat output in small increments rather than cycling fully on and off, delivering more consistent indoor temperatures and reduced energy consumption. Licensed HVAC technicians install this unit as part of a complete forced-air heating system in residential or light commercial applications.

This furnace is suited for residential and light commercial forced-air heating installations where high efficiency and flexible placement are priorities. The 21-inch cabinet width fits standard utility closet and alcove installations. The ECM motor reduces electrical draw during blower operation, which lowers overall system operating costs. Multi-position capability makes this unit appropriate for a wide range of construction types and retrofit applications where a single furnace model must serve varying ductwork configurations.

Key Features

• 100,000 BTU/h heating capacity for medium to large residential spaces
• 97% AFUE modulating operation for high fuel efficiency
• ECM blower motor reduces electrical consumption during heating and cooling fan cycles
• Multi-position installation supports upflow, downflow, and horizontal configurations
• 21-inch cabinet width fits standard alcove and closet installations
• ION system compatibility supports advanced communicating thermostat control

Compatibility

Designed as an OEM modulating gas furnace for residential forced-air heating systems requiring a multi-position, high-efficiency ECM unit with a 21-inch cabinet width.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the International Fuel Gas Code (IFGC), and the manufacturer's installation instructions. Disconnect all electrical power and shut off the gas supply before beginning any service or installation work. Proper venting is required per the furnace venting category; this unit requires a Category IV vent system due to its high efficiency and condensing operation. Do not reuse existing flue venting designed for standard-efficiency appliances without verifying material and configuration compatibility.

Technical Specifications

• Heating Capacity: 100,000 BTU/h
• AFUE: 97%
• Blower Motor Type: ECM
• Gas Type: Natural Gas
• Installation Position: Multi-Position
• Cabinet Width: 21 inches

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: g97cmn1002122b
