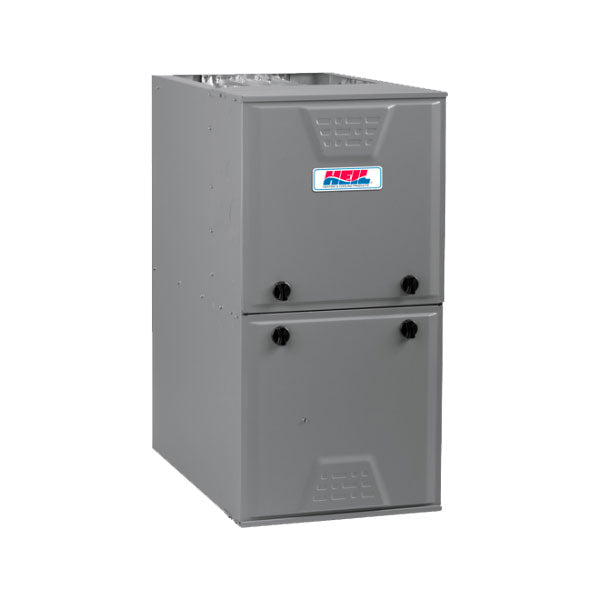

Icp G96VTN0401712B 96% Two-stage Gas Furnace 40K Btu

Product Description

The INTERNATIONAL COMFORT PRODUCTS G96VTN0401712B is a 96% AFUE, two-stage residential gas furnace equipped with a PWM (pulse-width modulation) variable-speed blower motor. It delivers a heating output range of 25,000 to 39,000 BTU/h, allowing the control board to modulate capacity based on load demand. The PWM motor provides precise airflow management across both heating and cooling modes, improving comfort and reducing operating noise compared to single-speed PSC motor furnaces. This unit is designed for installation by licensed HVAC technicians in ducted forced-air systems.

This furnace is suited for residential applications requiring high-efficiency, two-stage heating with integrated cooling airflow capability. In cooling mode, the blower delivers up to 1,105 CFM to support a matched air conditioning or heat pump system. In heating mode, airflow ranges from 625 to 850 CFM depending on the active stage. The upflow or applicable cabinet orientation makes it a fit for standard residential mechanical rooms, closets, or utility spaces where a 17.5-inch-wide cabinet is compatible with the duct layout.

Key Features

• 96% AFUE two-stage combustion for reduced fuel consumption versus single-stage designs
• PWM blower motor enables precise CFM control in both heating and cooling modes
• Cooling airflow up to 1,105 CFM supports matched central air or heat pump systems
• Heating output range of 25,000 to 39,000 BTU/h matches partial and full load conditions
• Heating airflow of 625 to 850 CFM across two stages

Compatibility

Designed as an OEM two-stage gas furnace for use in residential ducted forced-air systems. Consult the equipment submittal data and system design documentation to confirm compatibility with matched indoor coils, thermostats, and communicating controls before installation.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with the National Fuel Gas Code (NFPA 54 / ANSI Z223.1) and all applicable local codes. Shut off gas supply and disconnect electrical power before servicing or installing. Verify flue venting, gas line sizing, and condensate drainage meet manufacturer specifications and local mechanical code requirements. Do not operate the furnace without confirming proper airflow, gas pressure, and venting are established.

Technical Specifications

• AFUE: 96%
• Stages: Two-stage
• Heating Output: 25,000 to 39,000 BTU/h
• Cooling Airflow: 1,105 CFM
• Heating Airflow: 625 to 850 CFM
• Blower Motor Type: PWM
• Nominal Input Capacity: 40,000 BTU/h
• Cabinet Dimensions (L x W x H): 75 x 17.5 x 35 inches
• Weight: 141 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: G96VTN0401712B
