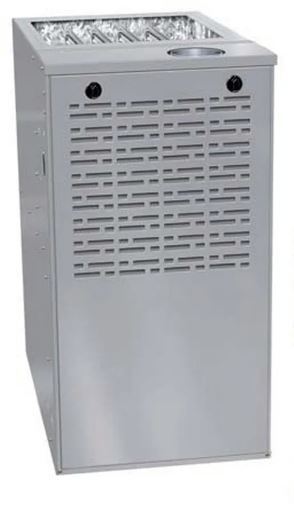

Icp g80ctl0902120b 80% Afue Gas Furnace 88000 Btu/h Ecm

Product Description

The INTERNATIONAL COMFORT PRODUCTS g80ctl0902120b is an 80% AFUE variable-speed gas furnace built for residential heating applications. It uses an ECM motor rated at 2000 CFM and delivers 88,000 BTU/h of heating output. The unit runs on 120 volts and features two-stage heating for improved comfort and efficiency. Cabinet air leakage is less than 2.0% at 1.0 inches W.C. and less than 1.4% at 0.5 inches W.C., tested per ASHRAE Standard 193. Licensed HVAC technicians install this furnace as part of a complete forced-air heating and cooling system.

This furnace is designed for multipoise installation, allowing it to be configured in upflow, downflow, or horizontal orientations depending on the job site. It supports two-stage cooling units and integrates with the ION Communicating Control System and the Observer Communicating Control System. The unit includes a dehumidification feature during cooling mode and a 24 VAC humidifier terminal. It also provides an electronic air cleaner terminal for improved indoor air quality. Low NOx units are designed for California installations and meet 40 ng/J NOx emissions requirements, making them suitable for air quality management districts with that standard.

Key Features

• 80% AFUE efficiency rating with cabinet air leakage tested per ASHRAE Standard 193
• ECM variable-speed motor rated at 2000 CFM for consistent airflow and quiet operation
• Two-stage heating with support for two-stage cooling units
• Compatible with ION and Observer Communicating Control Systems
• Integrated dehumidification feature, 24 VAC humidifier terminal, and electronic air cleaner terminal
• Flame rollout sensors standard; includes blocked vent switch for Category I venting
• Low NOx design meets 40 ng/J emissions requirement for California and qualifying air quality management districts

Compatibility

Compatible with two-stage cooling units and designed for use with the ION Communicating Control System and the Observer Communicating Control System. Suitable for multipoise residential forced-air installations requiring 80% AFUE furnace performance.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the International Fuel Gas Code (IFGC). Disconnect all electrical power and shut off the gas supply before servicing or installing the unit. Category I venting must be properly sized and installed per the manufacturer specifications and applicable codes. Verify that all communicating control system wiring and thermostat connections are completed before startup.

Technical Specifications

• AFUE: 80%
• Heating Output: 88,000 BTU/h
• Motor Type: ECM (Variable Speed)
• Stages: Two
• Airflow: 2000 CFM
• Voltage: 120 volts
• Configuration: Multipoise
• Width: 21 inches
• Cabinet Air Leakage: Less than 2.0% at 1.0 inches W.C.; less than 1.4% at 0.5 inches W.C. (ASHRAE Standard 193)
• NOx Emissions: 40 ng/J (Low NOx)
• Humidifier Terminal: 24 VAC
• Venting Category: Category I

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: g80ctl0902120b
