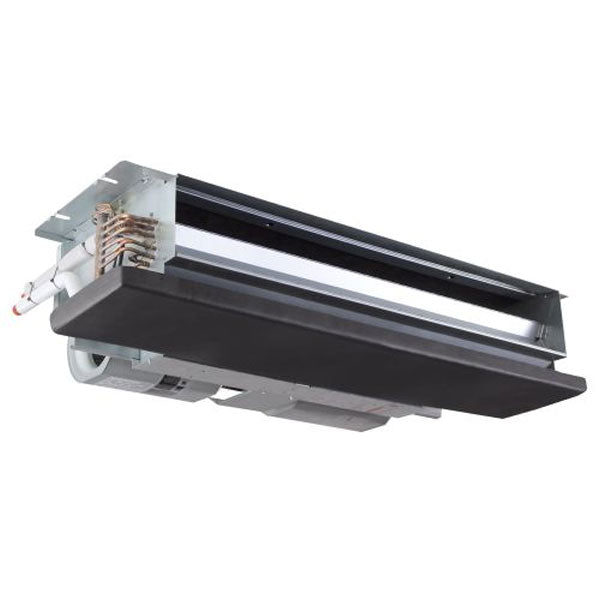

Icp FMC4X2400AL 2 Ton Horizontal Cased Fan Coil R-410A

Product Description

The INTERNATIONAL COMFORT PRODUCTS FMC4X2400AL is a 2-ton horizontal cased fan coil unit designed for ceiling-mount installation in residential and light commercial split-system air conditioning applications. The unit features a TXV (thermostatic expansion valve) metering device for efficient refrigerant flow management, a PSC (permanent split capacitor) blower motor, and an all-aluminum coil construction. It is rated for use with R-410A refrigerant. Licensed HVAC technicians typically install this unit as the indoor air handler component in a matched split system, handling the evaporator side of the refrigeration cycle.

This fan coil is configured for horizontal airflow and ceiling mounting, making it well suited for attic installations, crawlspace applications, or any installation where a horizontal air handler is required. The all-aluminum coil construction resists formicary corrosion, which is a common concern in residential environments with certain contaminants in the air. The TXV metering device provides more precise refrigerant control compared to fixed-orifice metering, supporting better system efficiency across varying load conditions.

Key Features

• 2-ton nominal cooling capacity for residential and light commercial split systems
• Horizontal cased configuration for ceiling-mount installation
• All-aluminum coil construction for improved corrosion resistance
• TXV metering device for precise refrigerant flow control
• PSC blower motor
• Compatible with R-410A refrigerant systems

Compatibility

Designed as an OEM-style indoor fan coil for horizontal ceiling-mount R-410A split-system applications. Consult system design documentation and AHRI matchup data to confirm compatibility with a specific outdoor condensing unit before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power and recover any system refrigerant before servicing refrigerant-side components. Ensure the ceiling-mount support structure is rated for the unit weight before securing the cabinet. Leak-test all refrigerant connections after installation and verify TXV operation under actual system operating conditions.

Technical Specifications

• Nominal Cooling Capacity: 2 tons
• Refrigerant: R-410A
• Metering Device: TXV (thermostatic expansion valve)
• Blower Motor Type: PSC (permanent split capacitor)
• Coil Material: All aluminum
• Configuration: Horizontal cased, ceiling mount
• Dimensions (L x W x H): 0.43 x 39.75 x 15 inches
• Weight: 109 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: FMC4X2400AL
