Icp fcmb4b36l0ca Fan Coil 36000 Btu 3 Ton Multi-position

Product Description

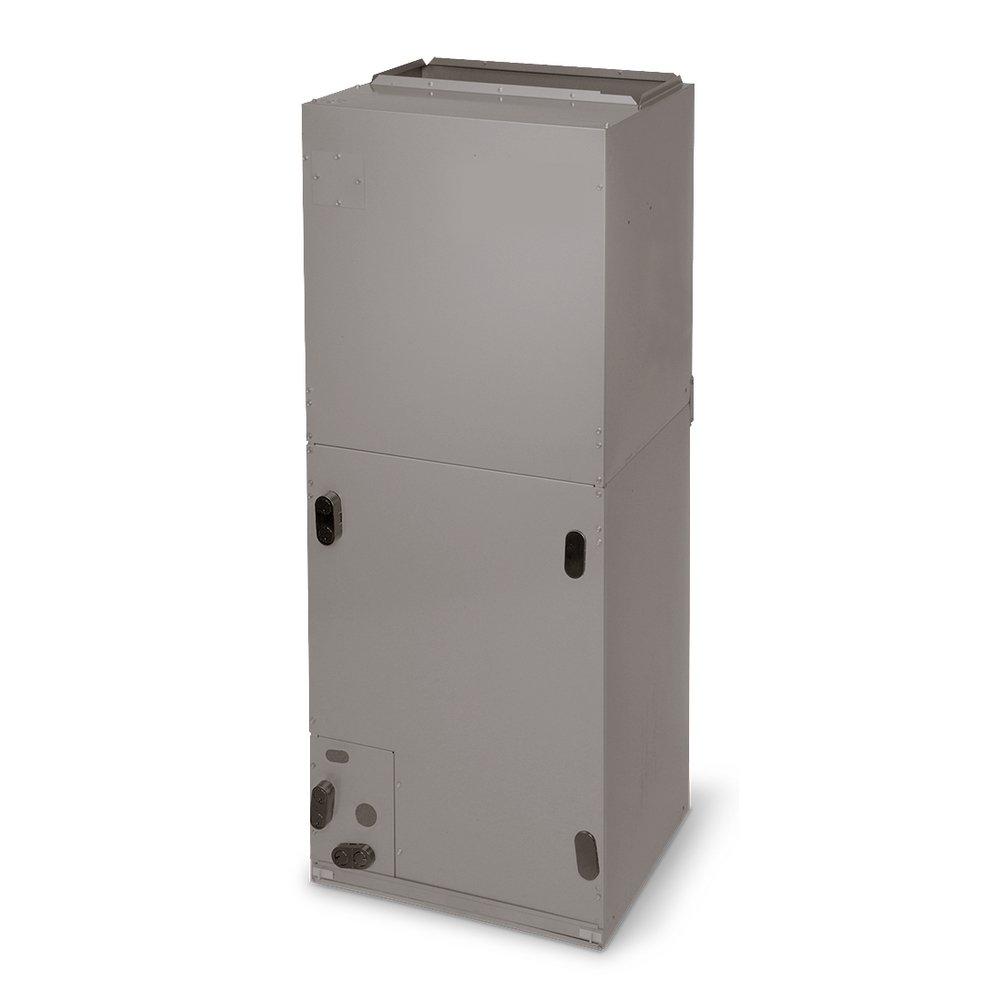

The INTERNATIONAL COMFORT PRODUCTS fcmb4b36l0ca is a multi-position fan coil unit rated at 36,000 BTU (3 tons) with a cooling capacity of 41,000 BTU/h. It features an all-aluminum coil construction, which resists corrosion and supports long-term performance in residential and light commercial split-system applications. Designed for flexibility, the unit accepts multiple installation orientations, making it suitable for a range of mechanical room configurations. Licensed HVAC technicians install this unit as the indoor air-handling component of a split cooling system. It operates with R-410A refrigerant and moves air at 1,200 CFM.

The fcmb4b36l0ca belongs to the FCM4 collection and is intended for split-system cooling installations where an indoor fan coil is paired with a matched outdoor condensing unit. Its multi-position configuration supports upflow, downflow, and horizontal applications, giving installers flexibility on job sites with limited or unconventional mechanical spaces. The unit is suited for residential new construction and retrofit projects where a 3-ton indoor coil is required and aluminum coil construction is preferred for its durability in humid environments.

Key Features

• 3-ton capacity rated at 36,000 BTU with a 41,000 BTU/h cooling rating
• All-aluminum coil construction for corrosion resistance
• Multi-position design supports upflow, downflow, and horizontal installations
• 1,200 CFM airflow rating for adequate air distribution in matched systems
• Compatible with R-410A refrigerant systems
• UL Listed for safety compliance

Compatibility

Designed as an OEM-style indoor fan coil replacement or new installation component for R-410A split-system cooling applications requiring a 3-ton, multi-position coil unit.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local codes and manufacturer guidelines. Disconnect and lock out all electrical power to the system before beginning any work. Refrigerant handling requires EPA Section 608 certification. Verify that the suction line (5/8 inch OD) and liquid line (3/8 inch OD) connections are properly sized and leak-tested before system startup.

Technical Specifications

• Tonnage: 3 Ton
• BTU: 36,000 BTU
• BTU Cooling Rating: 41,000 BTU/h
• CFM: 1,200 ft3/min
• Configuration: Multi-Position
• Coil Type: Fan
• Material: Aluminum
• Refrigerant: R-410A
• Liquid Line OD: 3/8 inches
• Suction Line OD: 5/8 inches
• Height: 57 inches
• Width: 22.5 inches
• Depth: 22.0625 inches
• Length: 24 inches
• Weight: 135 pounds
• UL Listed: Yes
• A2L Compatible: No
• Collection: FCM4

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: fcmb4b36l0ca
