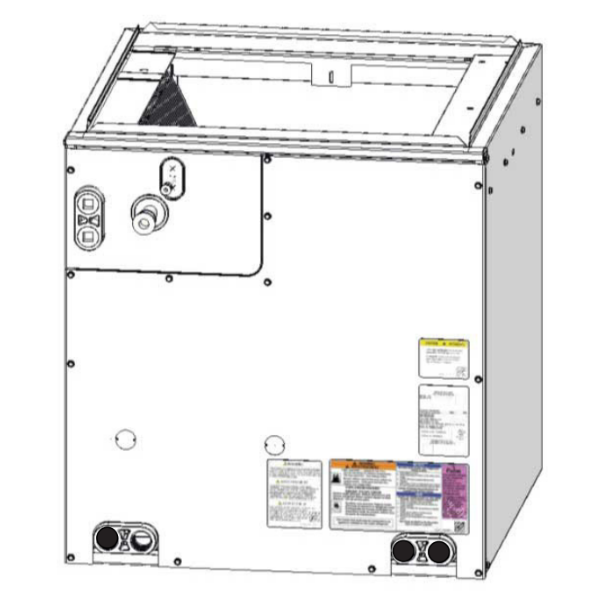

Icp EVMWX60M21A Cased V-coil Evaporator Coil 5 Ton 21 Inch

Product Description

The INTERNATIONAL COMFORT PRODUCTS EVMWX60M21A is a cased V-coil evaporator coil designed for use with R-410A refrigerant systems. It is a multi-poise unit, meaning it can be installed in multiple orientations to suit the application. Rated at 5 tons of cooling capacity and built in a 21-inch cabinet width, this coil is intended for residential and light-commercial split-system air conditioning and heat pump installations. HVAC technicians handle installation and service on this component as part of a matched split system.

This evaporator coil is suited for residential split-system cooling applications where R-410A refrigerant is used. The multi-poise cased design allows for upflow, downflow, or horizontal installation depending on the air handler or furnace configuration on site. The 21-inch cabinet width fits a standard cabinet opening common in residential equipment. The unit ships ready for field installation with the coil cased and ready to connect to the refrigerant circuit and ductwork.

Key Features

• Cased V-coil design for structural rigidity and efficient airflow distribution
• R-410A refrigerant compatible for use with current-generation equipment
• Multi-poise installation allows upflow, downflow, or horizontal orientation
• 21-inch cabinet width fits standard residential air handler openings
• 5-ton nominal cooling capacity for larger residential or light-commercial loads

Compatibility

Designed as an OEM-style replacement or new-installation cased evaporator coil for residential R-410A split-system air conditioning and heat pump systems requiring a 5-ton, 21-inch multi-poise coil.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA 608 certification for refrigerant handling. Shut down and lock out the system, and recover all refrigerant before disconnecting or replacing the coil. Ensure the drain pan and condensate lines are properly connected and sloped before returning the system to service. Follow local mechanical codes and manufacturer guidelines for refrigerant line sizing and coil sealing.

Technical Specifications

• Refrigerant Type: R-410A
• Nominal Cooling Capacity: 5 tons (60,000 BTU/h)
• Cabinet Width: 21 inches
• Coil Configuration: Cased V-Coil
• Installation Orientation: Multi-Poise
• Dimensions (L x W x H): 21 x 29.75 inches
• Weight: 47.6 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: EVMWX60M21A
