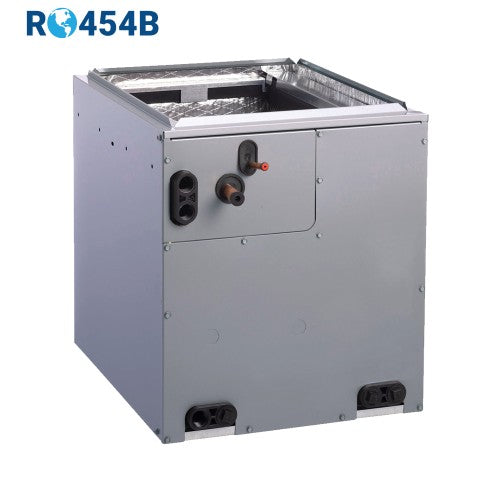

Icp EVM5X25M17A R-454B Aluminum V-coil Evaporator Coil 2T

Product Description

The INTERNATIONAL COMFORT PRODUCTS EVM5X25M17A is a 2-ton aluminum V-coil evaporator coil designed for use with R-454B refrigerant in residential and light commercial split-system air conditioning and heat pump applications. The aluminum construction reduces weight while providing corrosion resistance in typical indoor air handler environments. At 2 tons of capacity, this coil is sized for smaller residential systems and pairs with a compatible air handler or furnace coil cabinet. Installation and commissioning are performed by licensed HVAC technicians working with R-454B-rated equipment and tooling.

This evaporator coil is intended for multi-position V-coil (EVM5X) applications where the coil mounts inside a coil cabinet or air handler. The R-454B refrigerant compatibility makes it suitable for newer equipment lines transitioning away from R-410A. Its 2-ton rating fits typical small residential spaces. The coil ships at approximately 36.3 pounds, making single-technician handling manageable during rough-in and installation.

Key Features

• R-454B refrigerant compatible for use with current-generation low-GWP system equipment
• Aluminum coil construction for corrosion resistance and reduced overall weight
• V-coil configuration for multi-position coil cabinet installations
• 2-ton capacity suited for smaller residential split systems
• Part of the EVM5X coil family from International Comfort Products and Heil

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil within the EVM5X V-coil product family, intended for R-454B split-system applications. Consult the equipment manufacturer's coil-matching guide to confirm fitment with a specific air handler or coil cabinet before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle refrigerants under applicable EPA Section 608 regulations. Shut down and de-energize all system power and isolate refrigerant circuits before removing or installing any evaporator coil. R-454B is an A2L mildly flammable refrigerant — follow equipment manufacturer guidelines and local codes regarding ventilation and ignition sources during service. Verify coil cabinet compatibility, refrigerant line sizing, and TXV or metering device compatibility prior to startup.

Technical Specifications

• Refrigerant: R-454B
• Tonnage: 2 tons
• Coil Configuration: V-Coil
• Coil Material: Aluminum
• Weight: 36.3 pounds
• Product Category: Evaporator Coil

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: EVM5X25M17A
