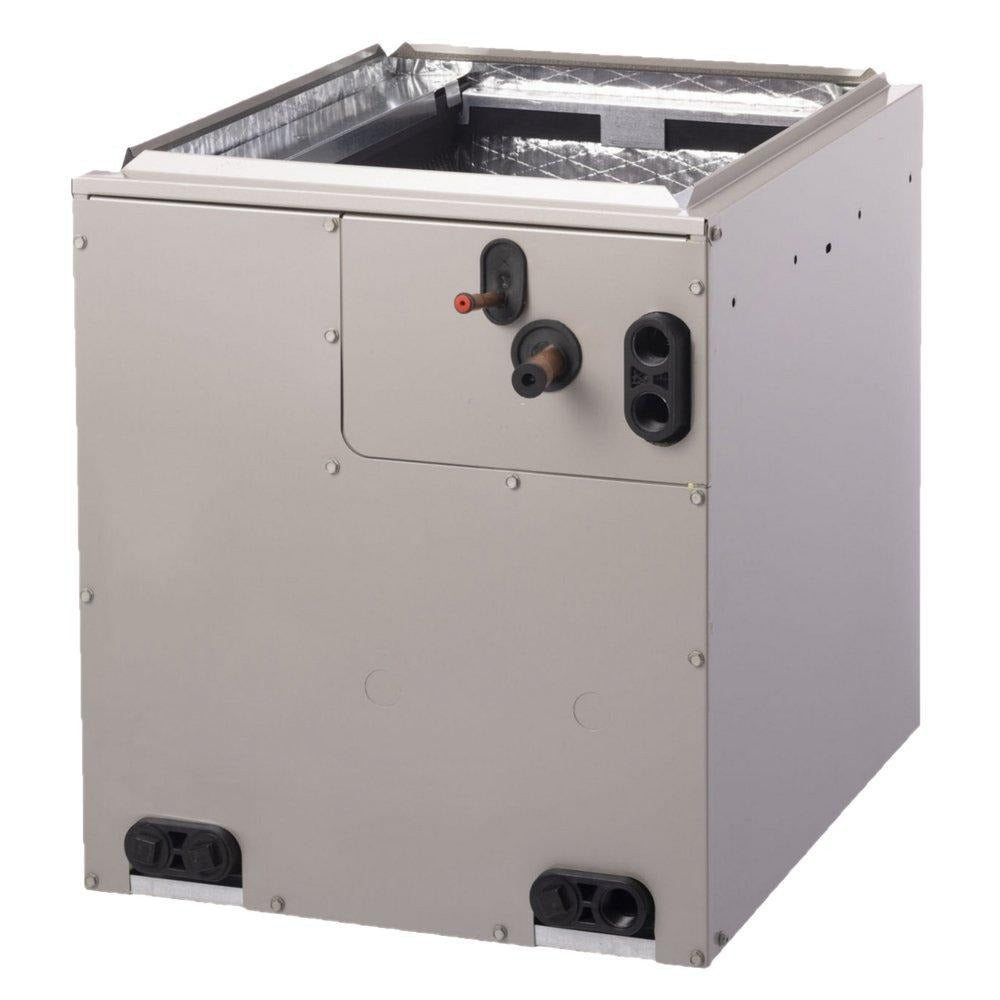

Icp evm4x25m17a Evaporator Coil 2 Ton Multi-position

Product Description

The INTERNATIONAL COMFORT PRODUCTS evm4x25m17a is a 2-ton cased evaporator coil built for multi-position installation in residential forced-air cooling and heat pump systems. The coil uses a V-coil configuration with an all-aluminum construction to maximize heat transfer surface area in a compact footprint. A factory-installed thermostatic expansion valve (TXV) serves as the refrigerant metering device, delivering precise refrigerant control across a range of load conditions. The fully insulated, galvanized steel cabinet protects internal components and minimizes condensation losses. This unit is designed for R-410A refrigerant systems and is installed by licensed HVAC technicians.

The evm4x25m17a is suited for indoor residential applications where airflow flexibility is required. Its multi-poise design supports vertical upflow, vertical downflow, and horizontal orientations, making it adaptable to attic, closet, basement, and crawlspace installations. Rated at 1000 CFM, this coil pairs with compatible 2-ton air handlers or furnaces in split-system configurations. The corrosion-resistant polybutylene terephthalate (PBT) drain pan provides long-term structural integrity in high-moisture environments.

Key Features

• V-coil configuration with all-aluminum coil for efficient heat transfer in a compact cabinet
• Factory-installed TXV metering device for precise refrigerant flow control
• Multi-poise design supports upflow, downflow, and horizontal installation orientations
• Galvanized steel cabinet with full insulation for durability and condensation control
• PBT corrosion-resistant drain pan for long-term performance in high-humidity environments
• UL Listed and compatible with R-410A refrigerant systems
• 10-year parts limited warranty

Compatibility

Designed as an OEM-style cased evaporator coil for use in 2-ton residential split-system applications using R-410A refrigerant. Part of the EVM4X product collection.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Shut off all electrical power and close the refrigerant service valves before handling line connections. The suction line connection is 3/4 inch OD and the liquid line connection is 3/8 inch OD. Verify cabinet orientation and drain pan slope before making final connections to ensure proper condensate drainage.
