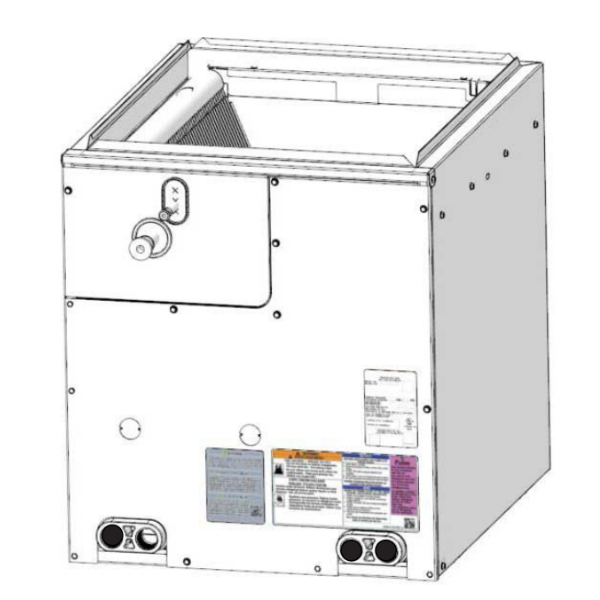

Icp EVDWX18M14A Cased Vertical V-coil Evaporator Coil

Product Description

The INTERNATIONAL COMFORT PRODUCTS EVDWX18M14A is a cased vertical V-coil evaporator coil designed for residential split-system air conditioning and heat pump applications using R-410A refrigerant. This coil serves as the indoor heat-exchange component in a central air system, absorbing heat from circulated air and delivering cooled air back into the conditioned space. At approximately 18,000 BTU/h capacity, it is sized for smaller residential systems and is installed by licensed HVAC technicians. The cased design simplifies installation by providing a factory-enclosed assembly ready for placement in a vertical airflow configuration.

This evaporator coil is suited for vertical upflow or downflow applications in residential forced-air systems. It is intended for use with R-410A refrigerant and is compatible with appropriately matched split-system condensing units and air handlers. The factory-cased enclosure integrates directly into a vertical duct or air handler cabinet, making it a common replacement or new-installation choice in residential HVAC systems where space and airflow direction are key considerations.

Key Features

• V-coil configuration maximizes heat-exchange surface area within a compact footprint
• Factory-cased enclosure for straightforward vertical installation
• Designed for use with R-410A refrigerant
• Approximate 18,000 BTU/h capacity suitable for smaller residential applications
• Compact dimensional profile at 14.1875 inches x 14.6875 inches facilitating installation in tight equipment spaces

Compatibility

Designed as an OEM-style cased vertical evaporator coil replacement for residential split-system air conditioning and heat pump systems using R-410A refrigerant.

Installation Notes

Installation must be performed by a licensed HVAC technician following applicable local mechanical codes and EPA Section 608 refrigerant handling regulations. Shut down and lock out the electrical supply and recover all refrigerant from the system before removing or installing any coil assembly. Ensure the coil is properly seated and sealed within the air handler or duct cabinet to prevent air bypass. Leak-test all refrigerant connections after installation before recharging the system.

Technical Specifications

• Refrigerant Type: R-410A
• Coil Configuration: V-Coil
• Orientation: Vertical Cased
• Approximate Capacity: 18000 BTU/h
• Dimensions (L x W): 14.1875 inches x 14.6875 inches
• Weight: 23.6 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: EVDWX18M14A
