Icp EVD5X61M24A R-454B Vertical V-evap Coil 5 Ton

Product Description

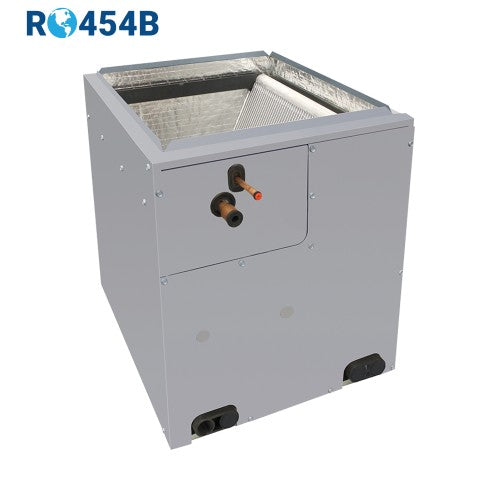

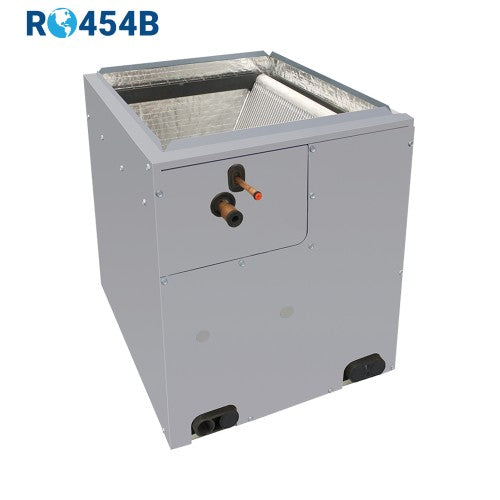

The INTERNATIONAL COMFORT PRODUCTS EVD5X61M24A is a 5-ton vertical V-configuration evaporator coil designed for use with R-454B refrigerant. Built with aluminum construction, this coil serves as a core component in split-system cooling and heat pump installations. It is engineered for vertical airflow applications where the coil sits above or adjacent to the air handler or furnace. Licensed HVAC technicians install this coil as part of a split system, pairing it with a matched outdoor condensing unit. The R-454B refrigerant compatibility positions this coil for current and near-future low-GWP system installations as the industry transitions away from R-410A.

This evaporator coil is suited for residential and light commercial split-system HVAC installations requiring 5-ton capacity. The V-coil configuration maximizes surface area within a compact cabinet footprint, supporting efficient heat transfer. Applications include new construction installs and system retrofits where an R-454B-compatible evaporator coil is required. The aluminum coil construction provides corrosion resistance and is appropriate for standard indoor air quality environments. Installation is performed by licensed HVAC technicians following manufacturer system-matching guidelines and local mechanical codes.

Key Features

• R-454B refrigerant compatible, aligned with current low-GWP refrigerant transition requirements
• 5-ton capacity supports mid-to-large residential and light commercial cooling loads
• Vertical V-coil configuration maximizes heat transfer surface area within the cabinet
• Aluminum coil construction for corrosion resistance and durability
• Designed for vertical airflow orientation in split-system or air handler applications

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil within the ICP EVD5X product group, compatible with R-454B split-system cooling and heat pump equipment requiring a 5-ton vertical V-coil.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and EPA Section 608 refrigerant handling regulations. The system must be fully de-energized and refrigerant recovered before removing or installing the evaporator coil. Verify that the condensing unit is rated for R-454B refrigerant before completing the system installation. Follow the manufacturer specifications for line set sizing, refrigerant charge, and drain pan connection to ensure proper system operation.

Technical Specifications

• Refrigerant: R-454B
• Tonnage: 5 ton
• Coil Configuration: Vertical V-coil
• Coil Material: Aluminum
• Orientation: Vertical
• Category: Evaporator Coil

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: EVD5X61M24A
