Icp EVD5X49M24A R-454B Vertical V-evap Coil 4 Ton

Product Description

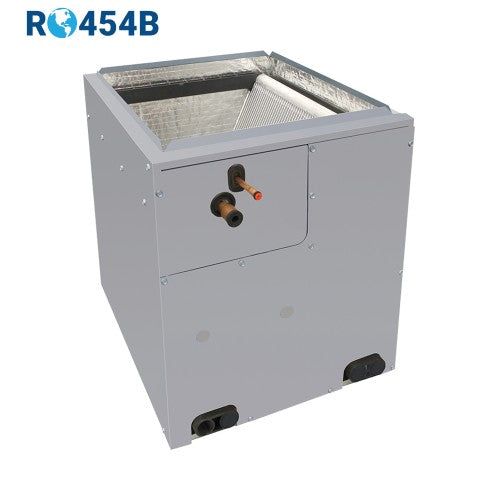

The INTERNATIONAL COMFORT PRODUCTS EVD5X49M24A is a 4-ton vertical V-configuration evaporator coil engineered for use with R-454B refrigerant. Built with aluminum construction, this coil sits in the indoor air handler or furnace cabinet and absorbs heat from return air as refrigerant passes through it, providing the cooling effect in a split or packaged HVAC system. At 48 pounds, it is a substantial component intended for residential or light commercial installations. Licensed HVAC technicians handle the installation and refrigerant connections as required by EPA Section 608 certification rules.

This evaporator coil is designed for vertical V-coil installations, fitting upflow or downflow air handler configurations where the A-frame or V-frame layout is specified. The R-454B refrigerant designation makes it suited for newer systems compliant with current low-GWP refrigerant requirements. It falls within the EVD5X product group and is appropriate for 4-ton system capacities. Installers should confirm cabinet dimensions and refrigerant type match before ordering.

Key Features

• Rated for 4-ton system capacity
• Compatible with R-454B low-GWP refrigerant
• Vertical V-coil configuration for upflow or downflow air handler installs
• Aluminum coil construction for corrosion resistance and heat transfer efficiency
• Weighs 48 pounds — sized for standard residential or light commercial cabinets

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for vertical V-coil air handler systems operating on R-454B refrigerant at 4-ton capacity within the ICP and Heil product families.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician. Shut down and de-energize the air handler and disconnect the refrigerant circuit before removing an existing coil or setting this unit. Verify that the existing cabinet, drain pan, and refrigerant line sets are compatible with the EVD5X49M24A before completing connections. Follow local mechanical codes and manufacturer instructions for drain line pitch and coil sealing to prevent condensate bypass.

Technical Specifications

• Refrigerant Type: R-454B
• Tonnage: 4 tons
• Coil Configuration: Vertical V-Coil
• Coil Material: Aluminum
• Weight: 48 pounds
• Product Category: Evaporator Coil

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: EVD5X49M24A
