Icp EVD5X42M17A Vertical V-evap Coil 3.5 Ton R-454B

Product Description

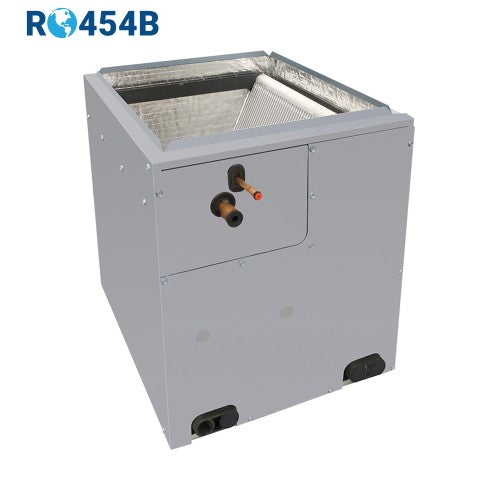

The INTERNATIONAL COMFORT PRODUCTS EVD5X42M17A is a vertical V-configuration evaporator coil rated at 3.5 tons and designed for use with R-454B refrigerant. The coil features aluminum construction throughout the fin and coil assembly, supporting efficient heat transfer in split-system cooling and heat pump applications. This is a factory-engineered component intended for installation by licensed HVAC technicians as part of a matched or compatible system. The V-coil geometry maximizes surface area within a compact vertical cabinet footprint, making it well suited for residential and light commercial air handler configurations.

The EVD5X42M17A is designed for vertical installation within an air handler or uncased coil cabinet. Its compatibility with R-454B positions it for use in newer equipment designed around A2L low-GWP refrigerants, which are increasingly common in residential cooling systems. The aluminum coil construction resists corrosion and reduces overall coil weight, which is relevant in attic and closet installations where access and structural load are considerations. Installation of this coil is appropriate in upflow or counterflow vertical air handler configurations depending on the matched cabinet.

Key Features

• Rated for R-454B refrigerant, supporting A2L low-GWP system designs
• 3.5-ton capacity for residential and light commercial split-system applications
• V-coil configuration maximizes coil surface area within a vertical cabinet
• All-aluminum coil and fin construction for corrosion resistance and reduced weight
• Vertical orientation for upflow or counterflow air handler installation

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for vertical split-system air handlers using R-454B refrigerant at 3.5-ton capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Shut down and lock out the entire system, including the air handler and outdoor unit, before beginning coil removal or installation. R-454B is an A2L mildly flammable refrigerant — follow current ASHRAE 15 and local mechanical code requirements for handling, leak testing, and system commissioning. Verify that the matched air handler cabinet and refrigerant line sets are rated and compatible with R-454B before installation.

Technical Specifications

• Refrigerant: R-454B
• Tonnage: 3.5 tons
• Coil Configuration: Vertical V-Coil
• Fin and Coil Material: Aluminum
• Orientation: Vertical
• Product Category: Evaporator Coil

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: EVD5X42M17A
