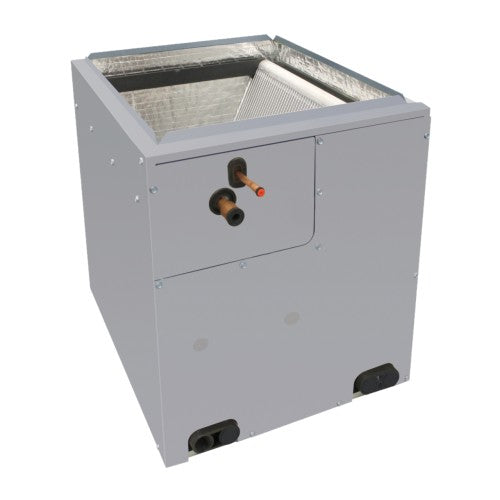

Icp ESD4X24M14A Cased Vertical S-coil 2 Ton Ac

Product Description

The INTERNATIONAL COMFORT PRODUCTS ESD4X24M14A is a cased vertical S-coil designed for residential and light-commercial air conditioning applications. This 2-ton aluminum slope coil uses microchannel (MCHX) heat exchanger technology to deliver efficient heat transfer in a compact, vertically oriented cased assembly. Licensed HVAC technicians install this evaporator coil as part of a split-system air conditioning setup, pairing it with a matched outdoor condensing unit and air handler or furnace. The aluminum construction keeps weight manageable while providing solid corrosion resistance. At 23.6 pounds, the coil is straightforward to handle during installation.

This coil is suited for vertical cased installations in residential split-system AC applications. The S-coil configuration supports upflow and downflow orientations common in residential furnace-based air handler setups. The microchannel aluminum construction makes it appropriate for new construction installs and replacement coil projects where a compact footprint and efficient refrigerant-side performance are required.

Key Features

• 2-ton nominal cooling capacity for residential split-system AC
• Microchannel (MCHX) aluminum heat exchanger construction
• Cased vertical S-coil design supports common upflow and downflow installations
• Aluminum slope coil for improved condensate drainage and corrosion resistance
• Compact footprint at 14.1875 inches x 12.4375 inches (L x W)
• Lightweight at 23.6 pounds for easier handling during service calls

Compatibility

Designed as an OEM-style cased vertical evaporator coil for residential split-system air conditioning configurations requiring a 2-ton nominal capacity coil.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect and lock out all electrical power to the air handler or furnace before beginning coil replacement. Refrigerant handling requires EPA Section 608 certification. Verify that the existing refrigerant line set, drain connections, and cabinet dimensions are compatible with this coil before completing the installation.

Technical Specifications

• Cooling Capacity: 2 Ton Nominal
• Coil Type: S-Coil Slope Coil
• Configuration: Cased Vertical
• Heat Exchanger Technology: Microchannel (MCHX)
• Material: Aluminum
• Dimensions (L x W): 14.1875 inches x 12.4375 inches
• Weight: 23.6 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: ESD4X24M14A
