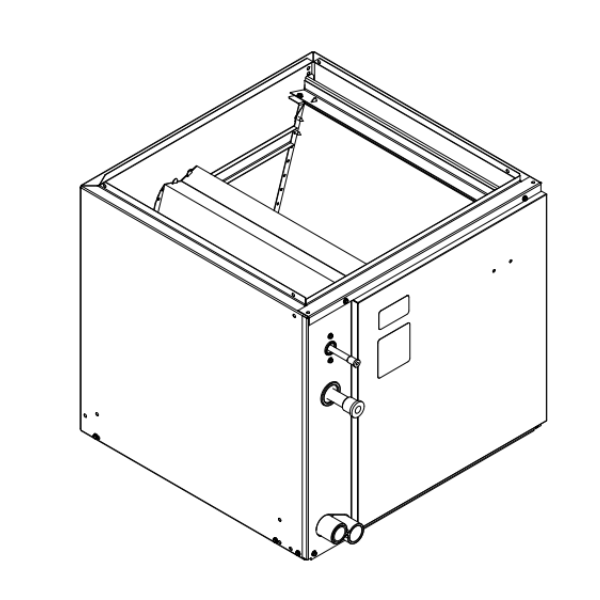

Icp ENDWX37L17A Cased Vertical N-coil R-410A 3 Ton

Product Description

The INTERNATIONAL COMFORT PRODUCTS ENDWX37L17A is a cased, vertical N-coil evaporator designed for residential and light-commercial split-system air conditioning and heat pump applications using R-410A refrigerant. Sized for 3 to 3.5 ton system capacities, it ships factory-cased for straightforward vertical installation above a matched air handler or furnace. At 56 pounds and measuring 17 inches by 17.5 inches by 27.1875 inches, the coil fits into standard cabinet openings without field modification in most installations. Licensed HVAC technicians handle procurement and installation of this component.

This evaporator coil is suited for vertical upflow or downflow split-system configurations where R-410A refrigerant is specified. The factory casing protects the coil assembly during transport and simplifies field installation by eliminating the need for a separate coil cabinet. It is intended for service and replacement use in residential central air systems and light-commercial equipment where a cased N-coil geometry is required. Check system static pressure and airflow ratings against the air handler or furnace before installation.

Key Features

• Cased N-coil design for vertical installation in split-system applications
• Compatible with R-410A refrigerant systems
• Sized for 3 to 3.5 ton system capacity range
• Factory casing eliminates need for a separate field-supplied cabinet
• 17 inch width fits standard vertical air handler and furnace cabinet openings
• Service-replacement unit for existing system upgrades or coil changeouts

Compatibility

Designed as an OEM-style service replacement cased vertical N-coil for R-410A split-system air conditioning and heat pump systems in the 3 to 3.5 ton capacity range.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle R-410A refrigerant under EPA Section 608 regulations. Disconnect and lock out all electrical power and close the refrigerant service valves before removing the existing coil. Verify that the cabinet dimensions and airflow direction match the replacement coil before committing to the installation. Follow local mechanical codes and the equipment manufacturer guidelines for brazing, leak testing, evacuation, and refrigerant charging procedures.

Technical Specifications

• Refrigerant Type: R-410A
• Coil Configuration: N-Coil, Cased, Vertical
• Nominal Capacity: 3 to 3.5 Ton
• Length: 17 inches
• Width: 17.5 inches
• Height: 27.1875 inches
• Weight: 56 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: ENDWX37L17A
