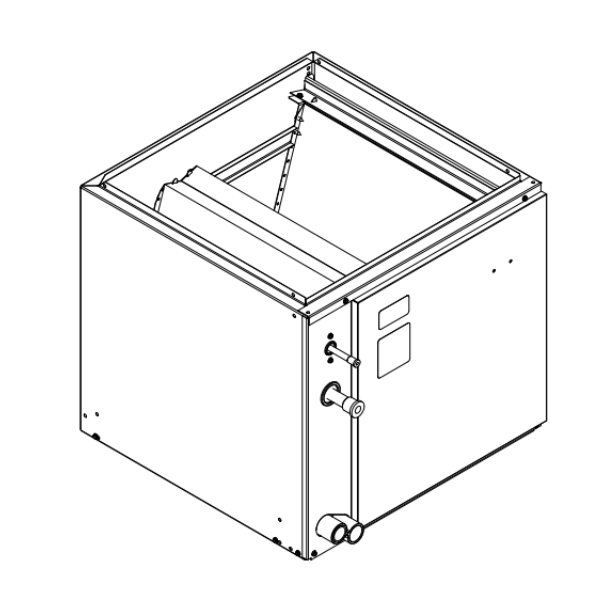

Icp ENDWX30L17A Cased N-coil Vertical R-410A 2.5 Ton

Product Description

The INTERNATIONAL COMFORT PRODUCTS ENDWX30L17A is a cased, vertical N-coil evaporator coil designed for use with R-410A refrigerant systems. This coil serves as a service replacement component in split-system air conditioning and heat pump installations, handling the heat absorption side of the refrigeration cycle. At 39 pounds, the unit is sized for residential or light commercial applications. Licensed HVAC technicians install and service this coil as part of system maintenance, coil replacement, or full system upgrades involving R-410A equipment.

This evaporator coil is suited for vertical upflow or downflow cased installations within an air handler or furnace cabinet. The N-coil configuration provides efficient airflow and heat transfer in space-constrained installations. It is designed to work with R-410A refrigerant, making it appropriate for modern split-system equipment that has transitioned away from R-22. The 30 in the model designation indicates a nominal 2.5-ton capacity class, placing it in common residential system sizes.

Key Features

• Cased design for direct drop-in installation without additional housing fabrication
• N-coil configuration supports efficient heat exchange in vertical installations
• Compatible with R-410A refrigerant systems
• Service-replacement rated for field installation in existing air handler or furnace cabinets
• 39-pound shipping weight suitable for single-technician handling on most jobs

Compatibility

Designed as an OEM-style service replacement evaporator coil for vertical cased applications using R-410A refrigerant in residential split-system air conditioning and heat pump equipment.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle HFC refrigerants under Section 608 of the Clean Air Act. Shut down the air handler and disconnect electrical power before removing the existing coil. Recover all refrigerant from the system before opening any refrigerant lines, and follow proper brazing and leak-check procedures before recharging. Verify that the new coil orientation and cabinet fit match the existing installation before final commissioning.

Technical Specifications

• Refrigerant Type: R-410A
• Coil Configuration: N-Coil
• Orientation: Vertical
• Enclosure: Cased
• Nominal Capacity: 2.5 Ton (30 class)
• Dimensions (L x W): 13.875 inches x 17 inches
• Weight: 39 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: ENDWX30L17A
