Icp end4x48l24a Cased Evaporator Coil 4 Ton R-410A Txv

Product Description

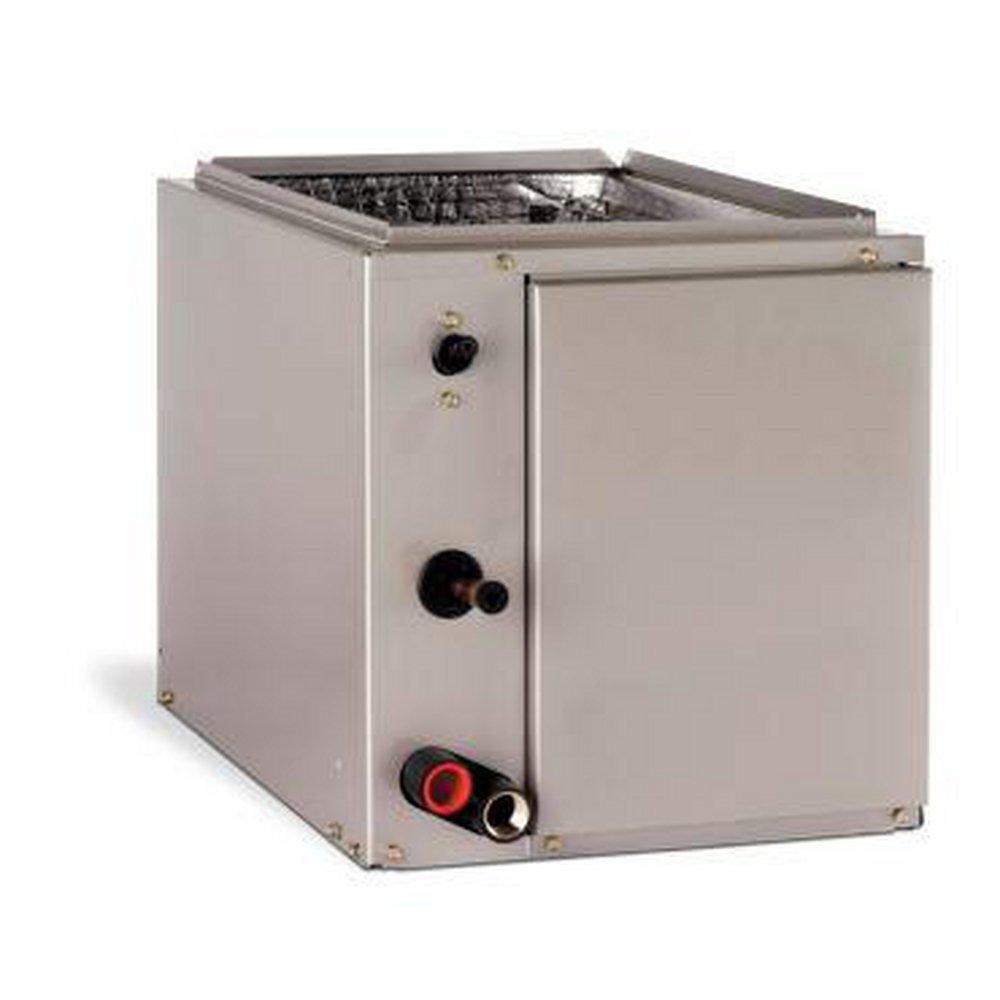

The INTERNATIONAL COMFORT PRODUCTS end4x48l24a is a cased evaporator coil rated at 4 tons (48,000 BTU/h), designed for residential and light commercial forced-air cooling systems. Part of the END4X Series, it features an aluminum and steel construction with a galvanized casing and handles airflow up to 1,800 CFM. Refrigerant control is handled by a factory-installed TXV, supporting R-410A refrigerant. This coil is installed by licensed HVAC technicians in split-system air conditioning or heat pump applications where a matched, cased indoor coil is required.

The end4x48l24a supports upflow, downflow, and vertical configurations, making it adaptable to a range of air handler and furnace installations. Its cased design simplifies installation by eliminating the need for field fabrication of a coil enclosure. At 24.5 inches wide and 22.0625 inches tall with a depth of 21 inches, it fits standard residential and light commercial air handler cabinets sized for 4-ton equipment. Consult the equipment manufacturer specifications to confirm dimensional fitment before installation.

Key Features

• 4-ton capacity rated at 48,000 BTU/h for medium to large residential or light commercial cooling loads
• Factory-installed TXV refrigerant control for precise superheat management
• R-410A refrigerant compatible — meets current split-system requirements
• Upflow, downflow, and vertical configuration support for installation flexibility
• Galvanized steel cased enclosure protects coil assembly and simplifies duct connection
• Max airflow of 1,800 CFM matches typical 4-ton air handler output
• UL Listed for safety compliance

Compatibility

Designed as an OEM-style cased evaporator coil for use with R-410A split-system air conditioners and heat pumps rated at 4 tons. Confirm matching tonnage, refrigerant type, and cabinet dimensions with the outdoor condensing unit and air handler or furnace before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Shut down and lock out the system, and recover all refrigerant from the existing circuit before removing or replacing the coil. Verify liquid line and suction line connections match the coil stub sizes of 0.375 inches OD and 0.875 inches OD respectively before brazing. Proper evacuation to the manufacturer-specified micron level is required before recharging with R-410A.

Technical Specifications

• Coil Type: Evaporator
• Collection: END4X Series
• Casing: Cased
• Tonnage: 4 Ton
• Capacity: 48,000 BTU/h (48 MBH)
• Max CFM: 1,800 CFM
• Refrigerant: R-410A
• Refrigerant Control: TXV
• Configuration: Upflow, Downflow, Vertical
• Liquid Line OD: 0.375 inches
• Suction Line OD: 0.875 inches
• Width: 24.5 inches
• Height: 22.0625 inches
• Depth: 21 inches
• Weight: 55 pounds
• Material: Aluminum, Steel
• Coating: Galvanized
• A2L Compatible: No
• UL Listed: Yes

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: end4x48l24a
