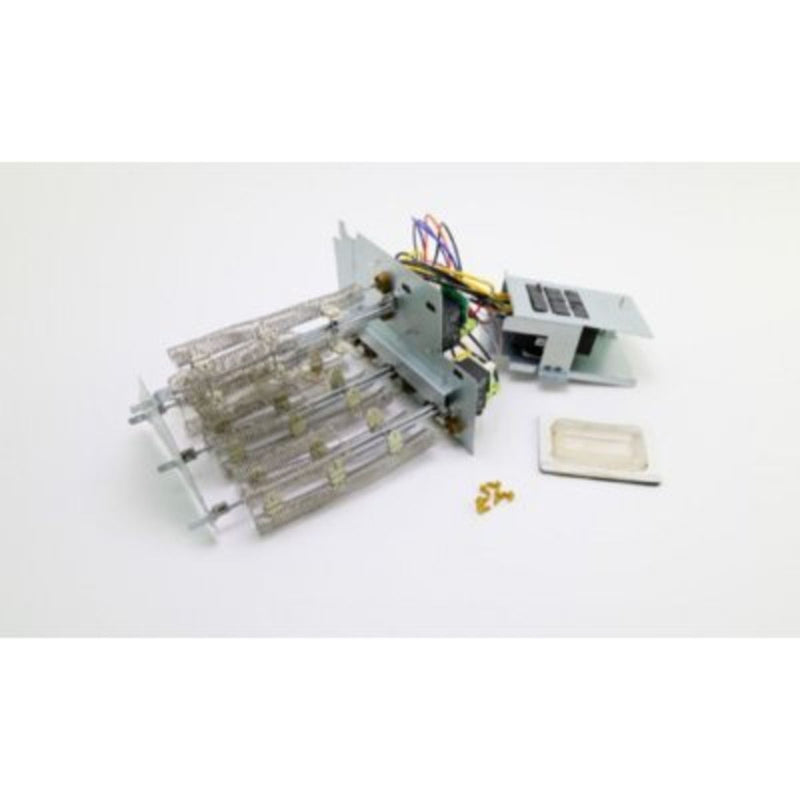

Icp ehc15akb 15kw Electric Heater Kit 230V Single Phase

Product Description

The INTERNATIONAL COMFORT PRODUCTS ehc15akb is a 15 kW electric heater kit designed for forced-air heating applications in residential and light commercial HVAC systems. Operating on 208 to 240 volts, single phase, 60 Hz power, this electric strip heater kit includes an integrated circuit breaker, providing overcurrent protection without requiring a separate disconnect component. Licensed HVAC technicians install this kit as a supplemental or primary electric heat source inside compatible air handlers and heat pump systems. The strip heater elements convert electrical energy directly into heat, delivering consistent output across a wide voltage range from 208 to 240 volts.

The ehc15akb is suited for residential and light commercial air handler installations where electric resistance heat is specified. It is commonly used as auxiliary or emergency heat in heat pump systems or as the sole heat source in electric furnace and air handler configurations. The included circuit breaker simplifies rough-in by reducing the number of separate components required in the electrical section of the air handler cabinet.

Key Features

• 15 kW heating output for robust supplemental or primary electric heat
• Wide voltage compatibility — operates on 208 to 240 volts single phase
• Integrated circuit breaker included for built-in overcurrent protection
• Single-phase, 60 Hz design suited to standard residential electrical service
• Electric strip heater configuration for direct installation into compatible air handler units

Compatibility

Designed as an OEM-style electric heater kit replacement for compatible single-phase air handler and electric furnace systems requiring a 15 kW strip heat section at 208 to 240 volts.

Installation Notes

Installation must be performed by a licensed HVAC technician or electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all electrical power to the air handler before removing or installing the heater kit. Verify that the supply circuit ampacity and wire gauge are rated for the full load current draw of a 15 kW, 240-volt load before energizing. Do not bypass or jumper the integrated circuit breaker.

Technical Specifications

• Heating Capacity: 15 kW
• Voltage: 208 to 240 volts
• Phase: Single phase
• Frequency: 60 Hz
• Type: Electric Strip Heater
• Circuit Breaker: Included

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: ehc15akb
