Icp eaa5x24m17a 2 Ton R-454B Uncased Vertical Evaporator Coil

Product Description

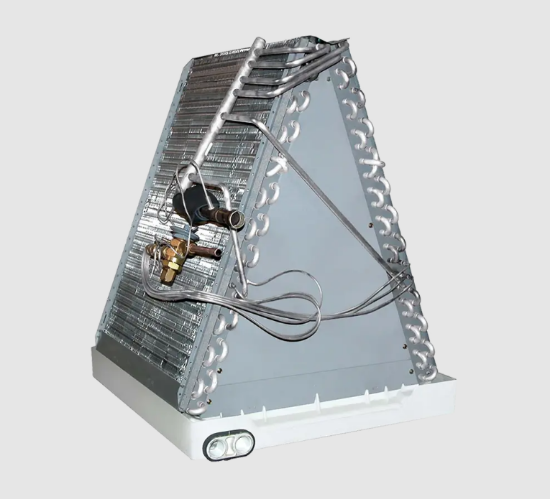

The INTERNATIONAL COMFORT PRODUCTS eaa5x24m17a is an uncased vertical aluminum A-style evaporator coil rated at 24,000 BTU/h (2 tons) and designed for use with R-454B refrigerant, an A2L low-GWP refrigerant increasingly specified in modern residential cooling systems. Part of the EAA5X series, this coil sits in the indoor air handler or furnace plenum and absorbs heat from return air before it passes to the condenser. Aluminum construction keeps weight down and resists corrosion in humid indoor environments. Licensed HVAC technicians familiar with A2L refrigerant handling requirements are the intended installers for this coil.

This coil is suited for residential split-system cooling and heat pump applications where the system design calls for R-454B refrigerant compatibility. The uncased vertical configuration makes it adaptable to a range of upflow or downflow air handler pairings, provided the cabinet dimensions align. It measures 20 inches wide, 17.75 inches tall, and 16.25 inches deep, making it appropriate for standard residential equipment cabinets in that size class.

Key Features

• R-454B compatible — designed for A2L refrigerant systems meeting current and near-term regulatory requirements
• Uncased design allows integration into a variety of existing or new equipment cabinets
• Vertical A-coil configuration supports upflow and downflow installations
• Aluminum coil construction resists corrosion and reduces overall assembly weight
• 2-ton (24,000 BTU/h) capacity fits common residential single-zone system sizes
• EAA5X series — consistent form factor for straightforward replacement scenarios

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for residential split-system or heat pump applications using R-454B refrigerant within the EAA5X series product family. Verify cabinet dimensions and refrigerant circuit compatibility with the matched condensing unit before installation.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician familiar with A2L refrigerant safety requirements, including ventilation precautions specific to mildly flammable refrigerants. Shut down and de-energize the air handler or furnace completely before opening the refrigerant circuit or repositioning the coil. Follow the equipment manufacturer installation instructions and applicable local mechanical codes for drain pan, condensate line, and plenum sealing requirements. Do not braze or solder near the coil without confirming the refrigerant circuit has been properly evacuated and purged.

Technical Specifications

• Product Type: Evaporator Coil
• Series: EAA5X
• Capacity: 24,000 BTU/h (2 Tons)
• Refrigerant: R-454B
• A2L Compatible: Yes
• Coil Type: Uncased
• Configuration: Vertical
• Width: 20 inches
• Height: 17.75 inches
• Depth: 16.25 inches

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: eaa5x24m17a
