Icp eaa5x24m14a Uncased A-coil 2 Ton R-454B Txv 14in

Product Description

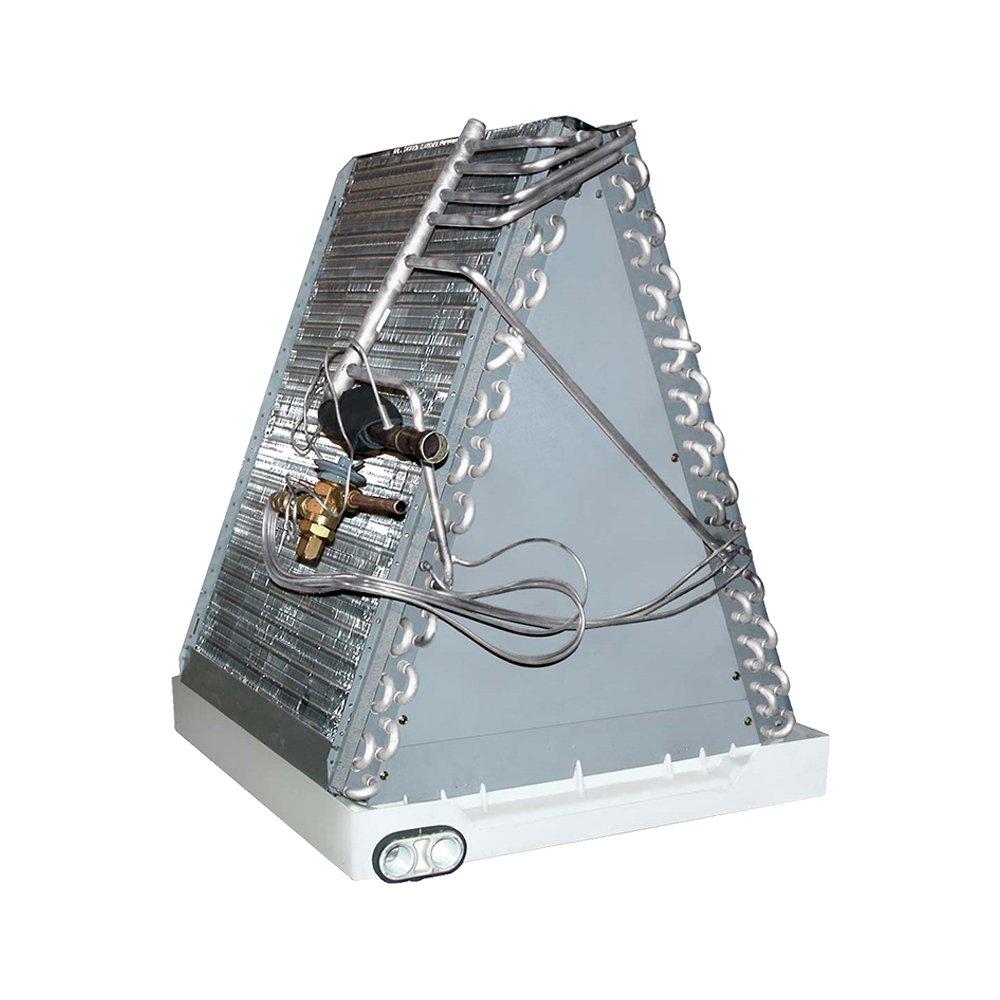

The INTERNATIONAL COMFORT PRODUCTS eaa5x24m14a is a 2-ton uncased evaporator A-coil designed for residential split-system air conditioning and heat pump applications. Built for vertical configuration, this coil uses a thermostatic expansion valve (TXV) for refrigerant metering and is rated for R-454B, an A2L low-GWP refrigerant increasingly required under current EPA and regional environmental mandates. At 25 pounds and 14 inches wide, it fits into standard air handler cavities where an uncased coil is preferred for field-fabricated or existing sheet metal enclosures. Licensed HVAC technicians install this coil as part of a matched split system.

This A-coil is suited for new installations and replacement work in residential and light-commercial vertical air handler configurations. Its uncased design gives installing contractors flexibility to fit it into existing ductwork plenums or custom sheet metal coil boxes. The TXV refrigerant control allows precise superheat management across a range of operating conditions, making it a reliable choice for systems where efficient part-load performance matters. Verify local availability and applicable refrigerant regulations before ordering, as R-454B equipment may be subject to regional sales restrictions.

Key Features

• Uncased vertical A-coil configuration for flexible field installation in custom or existing enclosures
• TXV refrigerant control for accurate superheat regulation and efficient operation
• Rated for R-454B (A2L) refrigerant in compliance with current low-GWP refrigerant requirements
• 2-ton (18,000 BTU/h) nominal cooling capacity
• 14-inch width fits standard residential air handler coil cavities
• Lightweight at 25 pounds for manageable single-technician handling in tight spaces

Compatibility

Designed as an OEM-style vertical uncased evaporator coil for use with matched split-system condensing units and air handlers operating on R-454B refrigerant. Consult the system manufacturer documentation to confirm matched-system pairings before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification for A2L refrigerants. Shut down and lock out the air handler and disconnect power at the breaker before beginning coil removal or installation. Because R-454B is classified A2L (mildly flammable), follow all applicable local codes and manufacturer guidelines regarding ignition source controls and ventilation during service. Verify refrigerant line sizing, TXV bulb placement, and coil orientation match the equipment manufacturer specifications before commissioning the system.

Technical Specifications

• Tonnage: 2 Ton
• Coil Type: A-Coil
• Configuration: Vertical
• Casing: Uncased
• Refrigerant: R-454B
• Refrigerant Control: TXV
• A2L Compatible: Yes
• Width: 14 inches
• Weight: 25 pounds

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: eaa5x24m14a
