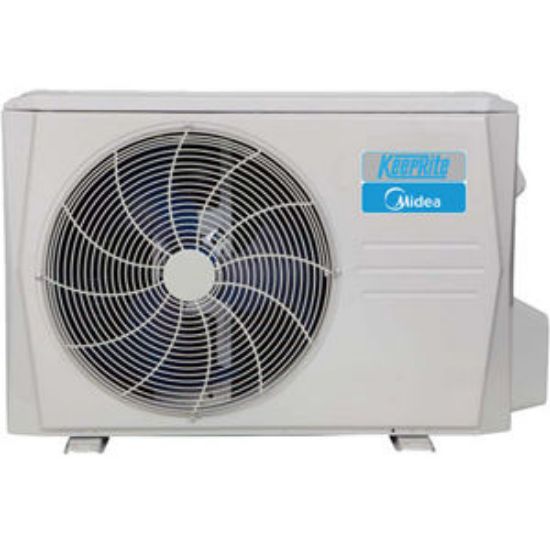

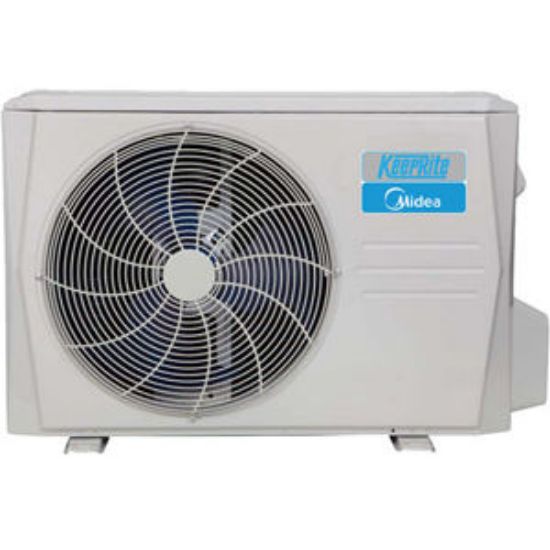

Icp dlcprah09aak Ductless Heat Pump Outdoor Unit 9000 Btu

Product Description

The INTERNATIONAL COMFORT PRODUCTS dlcprah09aak is a single-zone ductless heat pump outdoor unit from the DLCPRA Series, designed for residential and light-commercial mini-split applications. It delivers 9000 BTU/h of cooling capacity and 10000 BTU/h of heating capacity using an inverter compressor and R-410A refrigerant. Rated at 40 SEER and 14.5 HSPF, this unit offers high-efficiency year-round performance. Operating voltage is 208 to 230 volts, single phase, 60 Hz. Licensed HVAC technicians install and commission this system as part of a matched ductless split configuration.

This outdoor unit is suited for single-zone ductless installations in residential spaces such as bedrooms, additions, sunrooms, and small commercial areas where ducted systems are impractical. The unit handles a wide operating temperature range, functioning in heating mode from -22 degrees F to 86 degrees F and in cooling mode from -22 degrees F to 122 degrees F. It is paired with a compatible DLCPRA Series indoor air handler to form a complete mini-split system. The inverter compressor allows variable-speed operation, reducing energy consumption during partial-load conditions.

Key Features

• 9000 BTU/h cooling capacity and 10000 BTU/h heating capacity
• 40 SEER efficiency rating and 14.5 HSPF heating seasonal performance factor
• Inverter compressor for variable-speed, energy-efficient operation
• R-410A refrigerant with 1/4 inch liquid line and 1/4 inch suction line connections
• Wide operating range down to -22 degrees F in both heating and cooling modes
• Low sound level of 55.5 dBA during heating and cooling operation

Compatibility

Designed as an OEM-matched outdoor unit for the DLCPRA Series single-zone ductless mini-split system, requiring a compatible DLCPRA Series indoor air handler for complete system operation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect all electrical power before servicing the unit. R-410A refrigerant handling requires EPA Section 608 certification. Ensure the outdoor unit is mounted on a level pad or wall bracket with adequate clearance on all sides for airflow and service access.

Technical Specifications

• Cooling Capacity: 9000 BTU/h
• Heating Capacity: 10000 BTU/h
• SEER: 40
• EER: 15
• HSPF: 14.5
• Voltage: 208 to 230 volts
• Phase: 1 phase
• Frequency: 60 Hz
• Amperage: 13 amps
• Fuse Size: 15 amps
• Compressor Type: Inverter
• Refrigerant: R-410A
• Liquid Line Size: 1/4 inch
• Suction Line Size: 1/4 inch
• Cooling CFM: 1380 CFM
• Heating CFM: 1380 CFM
• Heating Sound Level: 55.5 dBA
• Cooling Sound Level: 55.5 dBA
• Heating Operating Temperature Range: -22 degrees F to 86 degrees F
• Cooling Operating Temperature Range: -22 degrees F to 122 degrees F
• Tonnage: 0.75 ton
• Overall Length: 14.29 inches
• Overall Width: 32.27 inches
• Overall Height: 27.64 inches

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: dlcprah09aak
