Icp d5csrah30aak 2.5 Ton Ductless Heat Pump 30000 Btu 20.5 SEER2

Product Description

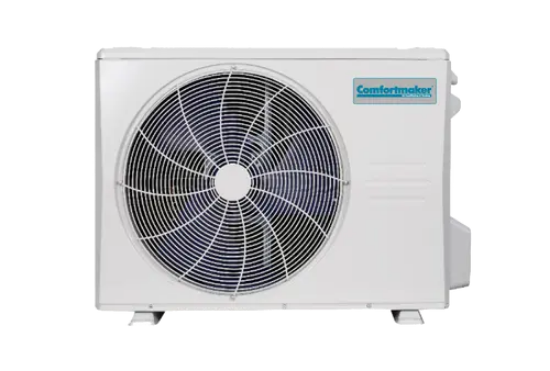

The INTERNATIONAL COMFORT PRODUCTS d5csrah30aak is an outdoor ductless heat pump condenser rated at 30000 BTU/h for both cooling and heating, with a 20.5 SEER2 efficiency rating. Operating on 208/230 volts and using R-32 refrigerant, this unit is classified as A2L compatible, meeting current low-GWP refrigerant handling requirements. Weighing 143 pounds and built with 22-gauge metal construction, it is engineered for residential and light-commercial ductless split system installations. Licensed HVAC technicians certified for A2L refrigerant handling are required for installation and service.

The d5csrah30aak belongs to the D5CSRAH series and is designed for ductless mini-split applications where a ducted distribution system is not present. At 2.5 tons capacity, it is well suited for single-zone or multi-zone residential applications such as additions, converted spaces, and homes without existing ductwork. The unit connects to a compatible indoor air handler via a 3/8-inch liquid line and a 5/8-inch suction line. Installation must follow local mechanical codes and manufacturer guidelines for A2L refrigerant systems.

Key Features

• 30000 BTU/h cooling and heating capacity at 2.5 tons
• 20.5 SEER2 efficiency rating for high-performance energy operation
• R-32 refrigerant with A2L compatibility for lower global warming potential
• 208/230V single-phase operation suitable for standard residential electrical service
• 3/8-inch liquid line and 5/8-inch suction line connections for straightforward refrigerant circuit hookup
• 22-gauge metal cabinet construction for durability in outdoor installation

Compatibility

Designed as an OEM outdoor condenser unit within the D5CSRAH series ductless heat pump line, intended for pairing with a compatible INTERNATIONAL COMFORT PRODUCTS indoor air handler in a ductless split system configuration.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician who is also trained and authorized to handle A2L classified refrigerants such as R-32. Disconnect and lock out all electrical power before servicing the unit. The outdoor condenser must be mounted on a level, stable pad and positioned per the minimum clearance requirements stated in the installation manual. Refrigerant line sets should be sized and routed per the manufacturer specifications and applicable local mechanical codes.

Technical Specifications

• BTU Cooling Rating: 30000 BTU/h
• BTU Heating Rating: 30000 BTU/h
• Tonnage: 2.5 Tons
• SEER2: 20.5
• Voltage: 208/230V
• Refrigerant: R-32
• A2L Compatible: Yes
• Height: 32 inches
• Width: 31-3/16 inches
• Depth: 16-1/2 inches
• Weight: 143 pounds
• Liquid Line OD: 3/8 inches
• Suction Line OD: 5/8 inches
• Gauge (Metal): 22 ga
• Style Name: D5CSRAH
• Indoor/Outdoor: Outdoor
• Duct Type: Ductless

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: d5csrah30aak
